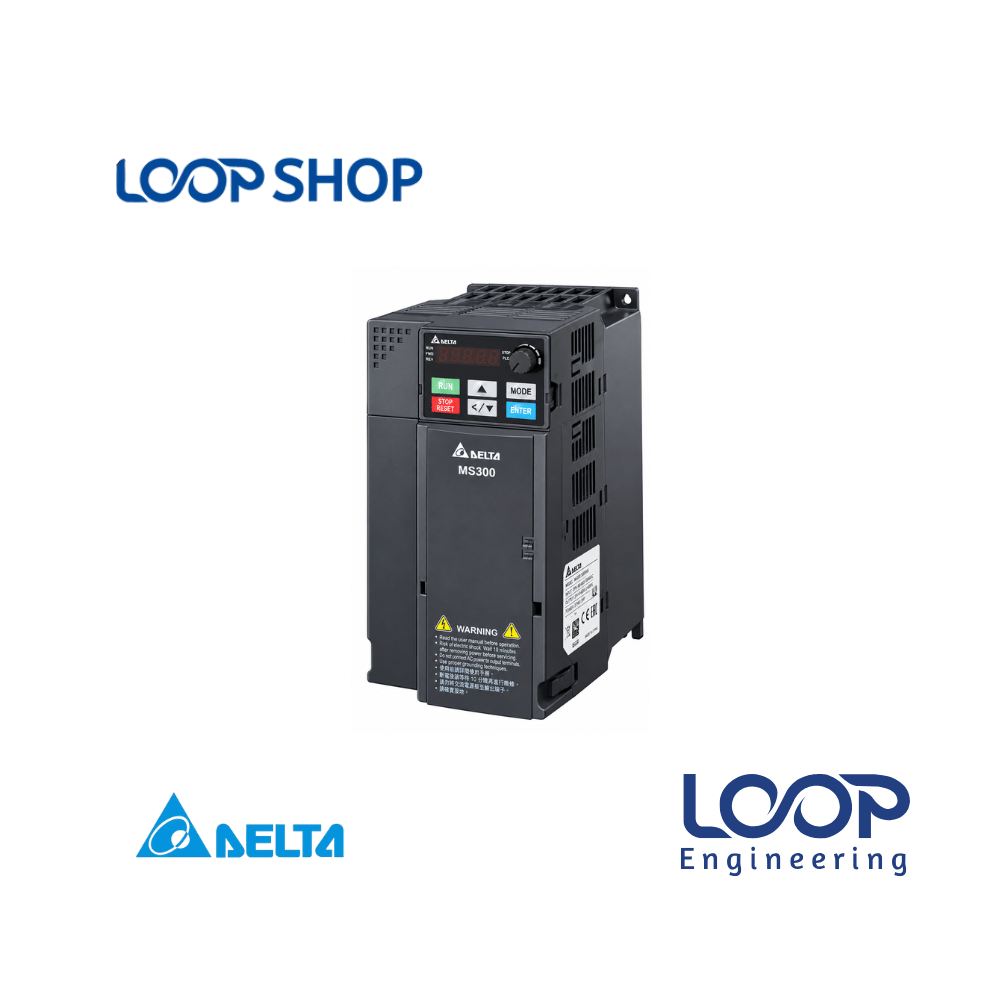

Delta VFD17AMS43ANSAA MS300 VFD 7.5kW 10HP Motor Control

Description

The Delta VFD17AMS43ANSAA is a standard compact vector control AC drive from Delta’s advanced MS300 Series. Built upon Delta’s superior power electronics technology, this drive provides precise speed and torque regulation for 3-phase electric motors rated up to 7.5kW (10HP).

Engineered with a 40% reduction in physical drive size compared to traditional models, the VFD17AMS43ANSAA maximizes enclosure space efficiency and simplifies panel layout. Supporting both asynchronous Induction Motors (IM) and synchronous Permanent Magnet (PM) motors, it incorporates integrated Safe Torque Off (STO) hardware safety, onboard PLC programming, a communication card slot, and a high-speed USB port. For manufacturing, processing, and textile sectors in Bangladesh, this drive ensures exceptional energy efficiency, rapid commissioning, and high operational stability under challenging factory conditions.

Key Features

• IM and PM Motor Control: Versatile algorithm supports both induction and permanent magnet synchronous motors.
• Built-in Safe Torque Off (STO): Hardware-level safety measures prevent unintentional motor starting for high machine safety compliance.
• 40% Compact Footprint: Ultra-compact micro chassis saves significant panel space and reduces enclosure costs.
• Integrated Micro-PLC: Enables custom ladder logic program execution directly on the drive without requiring an external controller.
• High-Speed USB Port: Allows fast parameter uploads, downloads, and firmware management without external control power.
• Flexible Communication Expansion: Built-in slot accepts optional cards for Modbus, PROFIBUS, DeviceNet, CANopen, and Ethernet/IP.

Technical Advantages

• High Efficiency: Sensorless vector control optimizes output voltage and current based on load conditions, minimizing motor heat and line loss.
• Durable Construction: Industrial PCB conformal coating protects internal circuitry against dust, humidity, and chemical contaminants.
• Safety Protection: Advanced integrated protection against overcurrent, overvoltage, undervoltage, drive overtemperature, overload, and ground faults.
• Energy Saving: Dynamic energy management delivers substantial electricity savings during partial load demand.
• Easy Maintenance: Removable cooling fans and USB parameter cloning accelerate field maintenance and drive swapping.

Applications

• Industrial: Heavy material handling conveyors, industrial crushers, mixers, and automated packaging systems.
• Factory: Textile spinning frames, garment processing units, plastic extrusion, and pharmaceutical manufacturing across Bangladesh.
• Commercial: Commercial HVAC ventilation fans, exhaust blowers, and municipal booster pumps.
• Office: Automated building water distribution systems and central air circulation systems.
• Residential: Multi-story apartment hydro-pneumatic water pumping stations.
• Project Installation: OEM machinery building, automated panel fabrication, and industrial pumping projects.

Why Choose This Product?

• Uncompromising Reliability: Developed by Delta Electronics, an internationally trusted leader in industrial automation technology.
• High Operational Stability: Provides smooth dynamic torque response, preventing mechanical stutter during startup and load shifts.
• Cost Effectiveness: Onboard PLC, STO safety, and compact size eliminate external relays, hardware modules, and extra cabinet space.
• After-Sales Value: Supported locally by LOOP Shop expertise, standard manufacturer warranty, and dependable technical support across Bangladesh.

Technical Specification Table

Features List

✓ IM and PM motor control flexibility

✓ Built-in Safe Torque Off (STO) function

✓ 40% reduced compact physical footprint

✓ Integrated PLC ladder logic execution

✓ High-speed USB port for data transfer

✓ Comprehensive electrical and thermal protection

Benefits For Customers

• Reduces Electricity Cost: Sensorless vector control dynamically adjusts output power, reducing factory utility expenses.
• Improves Operational Reliability: Soft startup eliminates mechanical shock to gearboxes, couplings, and belts.
• Saves Maintenance Cost: Conformal PCB coating prevents premature component failure caused by environmental dust and moisture.
• Suitable for Bangladesh Environment: Performs reliably in high ambient temperatures (-20°C to 50°C) and copes well with local line voltage variations.

Installation & Maintenance Guide

Installation Requirements:

• Install vertically inside an IP20 or higher rated control panel, protected from direct sunlight, corrosive gases, and water ingress.
• Maintain proper top and bottom clearance for unrestricted heat dissipation through internal cooling fins.
• Connect power lines to a 3-phase 380V–480V AC power supply and verify solid earthing connections before applying mains power.

Maintenance Tips:

• Periodically remove dust and lint build-up from internal cooling fans and heat sink fins using dry compressed air.
• Check wire terminal screws routinely to prevent loose electrical contacts caused by machine vibration.
• Use the built-in USB port to back up parameter configurations to a PC for quick restoration during maintenance.

Safety Instructions:

• Always disconnect main AC power before opening terminal covers or performing maintenance.
• Allow at least 5 to 10 minutes after turning off main power for high-voltage DC bus capacitors to discharge completely.
• Installation, wiring, and parameter commissioning must be performed by qualified electrical personnel.

Frequently Asked Questions (FAQ)

Q: What is the price of Delta VFD17AMS43ANSAA in Bangladesh?

A: The price of the Delta MS300 VFD17AMS43ANSAA 7.5kW 10HP drive in Bangladesh varies based on stock availability and import exchange rates. Contact LOOP Shop at loopshop.com.bd for current price quotes.

Q: Where can I buy Delta VFD17AMS43ANSAA in Bangladesh?

A: You can buy genuine Delta VFD17AMS43ANSAA AC drives online directly from LOOP Shop (loopshop.com.bd), a trusted supplier of industrial automation products in Bangladesh.

Q: What warranty does this product have?

A: The Delta VFD17AMS43ANSAA comes with a 1-year standard manufacturer warranty against manufacturing defects when purchased through LOOP Shop.

Q: Is this suitable for Bangladesh climate?

A: Yes, it is rated to operate in ambient temperatures from -20°C up to 50°C and features protective PCB coating suitable for hot, humid tropical environments.

Q: How to install this product?

A: Mount vertically inside a ventilated electrical enclosure, connect to a 3-phase 380V–480V power supply, and configure parameters via keypad or USB port with assistance from a qualified engineer.

Q: Does the Delta VFD17AMS43ANSAA support Permanent Magnet (PM) motors?

A: Yes, the MS300 series supports both standard asynchronous Induction Motors (IM) and Permanent Magnet (PM) synchronous motors.

Q: What is the advantage of the built-in STO function?

A: Safe Torque Off (STO) provides a hardware-level safety stop that cuts motor power creation without disconnecting main drive power, ensuring operator safety and reducing safety relay wiring.

Q: How much panel space does the MS300 series save?

A: The Delta MS300 series features an ultra-compact micro design that reduces overall drive size by up to 40% compared to previous generations.

Q: What is the rated output current of VFD17AMS43ANSAA?

A: It provides a rated output current of 17.0 Amps for 7.5kW (10HP) 3-phase 380V–480V motors.

Q: Who provides tech support for Delta VFDs bought from LOOP Shop?

A: LOOP Shop provides technical guidance, wiring instructions, and basic parameter configuration support across Bangladesh.
