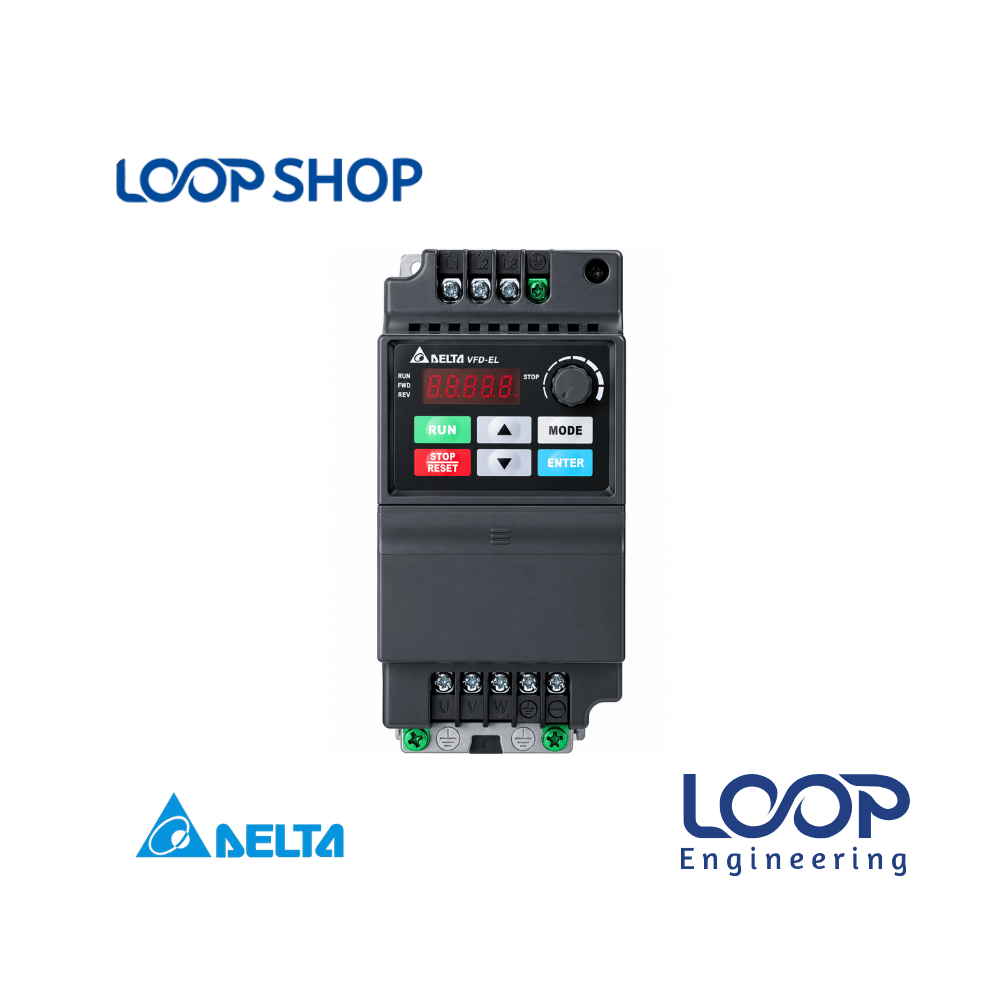

Delta VFD-EL Series Micro AC Drive Inverter for Motor Control

Description

The Delta VFD-EL Series AC Drive Inverter is a new-generation, multi-function micro AC drive designed to deliver precise motor speed regulation and high power efficiency in a compact footprint. Built with an integrated EMI filter, an RFI switch, high-accuracy current detection, and a built-in user keypad, the VFD-EL series simplifies daily machine operations while protecting electric motors from thermal and electrical overload.

Engineered to optimize control panel space, the VFD-EL series supports DC bus sharing, making multi-drive installations cleaner and more energy-efficient. For machine builders, factory owners, and system integrators in Bangladesh, this micro drive series provides an economical, durable, and user-friendly solution to manage 3-phase AC motor speeds across diverse industrial settings.

Key Features

• Built-in EMI Filter & RFI Switch: Reduces high-frequency electromagnetic noise to meet strict industrial EMC requirements without needing external line filters.
• DC Bus Sharing Support: Allows multiple VFD-EL drives to share a common DC bus, simplifying wiring and enabling effective energy reuse in multi-axis setups.
• High Accurate Current Detection: Precise current sensing provides fast protection response during overcurrent, stall, or mechanical jam events.
• Integrated Front Keypad: Built-in digital keypad allows quick speed adjustment, parameter setup, and real-time status diagnostics.
• Compact Micro-Type Form Factor: Space-saving enclosure allows high-density installation inside small control boxes and OEM machinery frames.

Technical Advantages

• High Efficiency: Delivers optimal voltage-to-frequency motor control to maximize continuous torque output with minimal electrical power loss.
• Durable Construction: Built with industrial-grade power electronics to maintain operational stability in continuous duty environments.
• Safety Protection: Comprehensive electronic protective circuits shield against motor overcurrent, overvoltage, undervoltage, phase loss, and thermal overload.
• Energy Saving: Dynamic frequency adjustment matches motor power draw directly to load demands, reducing overall electricity consumption.
• Easy Maintenance: Modular terminal layout and clear keypad display facilitate fast setup, quick parameter troubleshooting, and easy maintenance checks.

Applications

• Industrial: Small conveyors, textile auxiliary machinery, packaging lines, labeling units, and processing equipment.
• Factory: Water supply pumps, ventilation blowers, exhaust fans, and automated machine tools.
• Commercial: Commercial HVAC fans, water booster systems, and air handling equipment.
• Project Installation: Automated control panel builds, OEM machinery manufacturing, and plant energy retrofits across Bangladesh.

Why Choose This Product?

• World-Class Brand Reliability: Manufactured by Delta Electronics, a globally trusted leader in industrial automation and power electronics.
• Cost Effectiveness: Combines built-in EMI filtering, current sensing, and overload protection in one micro drive, minimizing overall hardware costs.
• Consistent Performance: Delivers smooth motor acceleration ramps, stable speed holding, and minimal acoustic noise during operation.
• After-Sales Value: Supported in Bangladesh by Loop Shop with authentic product verification, technical setup guidance, and standard warranty protection.

Technical Specification Table

Features List

✓ Multi-function micro-type drive for space-saving panel installation

✓ Built-in EMI filter and RFI switch for noise suppression

✓ Easy DC bus sharing for multi-drive systems

✓ High precision current detection for rapid fault protection

✓ Integrated digital keypad for easy parameter configuration

✓ Comprehensive motor overload and thermal protection

Benefits For Customers

• Reduces Electricity Cost: Minimizes peak electrical consumption by adjusting motor speed according to real-time process demand.
• Improves Operational Reliability: Soft starting and stopping eliminate sudden mechanical shocks on belts, gearboxes, and motor bearings.
• Saves Maintenance Cost: Built-in overload and current protections prevent motor winding burnouts, reducing costly machinery downtime.
• Suitable for Bangladesh Environment: Built to perform reliably under high ambient factory temperatures and fluctuating power grid conditions in BD.

Installation & Maintenance Guide

Installation Requirements

• Mount the drive unit vertically inside an IP54-rated or well-ventilated enclosure to ensure proper vertical airflow across heatsinks.
• Maintain recommended clearance space above, below, and on the sides of the drive chassis for unhindered heat convection.
• Use shielded control lines and verify proper earth grounding (PE terminal connection) to ensure optimal EMI filter performance.
• Verify grid supply voltage matches the drive model specification before connecting input power.

Maintenance Tips

• Clean dust, lint, and ambient particulate accumulation from cooling vents using clean, dry compressed air every 3 to 6 months.
• Regularly check power terminal block screws for tightness to prevent high-resistance heating caused by machine vibration.
• Ensure control panel interior ambient temperatures stay below 50°C during continuous full-load operations.

Safety Instructions

• Always disconnect incoming main AC power and wait at least 10 minutes for internal DC bus capacitors to fully discharge before opening covers.
• Never apply AC input main power directly to output motor terminals U, V, and W.
• Wiring, parameter configuration, and routine servicing must be performed by certified electrical engineers or automation technicians.

Frequently Asked Questions (FAQ)

Q: What is the price of DELTA VFD-EL Series AC Drives Inverter in Bangladesh?

A: The price of the Delta VFD-EL series inverter in Bangladesh varies based on the specific power rating (kW/HP) selected, import duties, and stock availability. Visit loopshop.com.bd or contact Loop Shop support for live pricing.

Q: Where can I buy DELTA VFD-EL Series AC Drives Inverter in Bangladesh?

A: You can purchase authentic Delta VFD-EL series drives online directly from loopshop.com.bd with fast delivery options across Dhaka, Chattogram, Sylhet, and all major industrial districts in BD.

Q: What warranty does this product have?

A: The Delta VFD-EL series inverters come with a standard 1-year manufacturer warranty against operational defects when purchased from Loop Shop.

Q: Is this suitable for Bangladesh climate?

A: Yes, the Delta VFD-EL series is engineered for high industrial durability, operating reliably under high ambient temperatures and dusty conditions common in Bangladeshi factories.

Q: How to install this product?

A: Mount the micro drive vertically in a panel box, connect input AC power to the specified input terminals, wire motor leads to terminals U/V/W, and configure parameters using the built-in keypad.

Q: Does the Delta VFD-EL series include a built-in EMI filter?

A: Yes, the VFD-EL series features an integrated EMI filter and RFI switch to reduce high-frequency electromagnetic noise interference.

Q: What is DC bus sharing on the Delta VFD-EL series?

A: DC bus sharing allows multiple VFD-EL drives to connect their DC buses together, simplifying panel wiring and optimizing power consumption in multi-drive systems.

Q: Does it have an integrated keypad?

A: Yes, it includes a built-in keypad on the front panel for simple parameter tuning, speed regulation, and real-time status display.

Q: What applications are best suited for the Delta VFD-EL drive?

A: It is ideal for small conveyors, water supply pumps, ventilation blowers, packaging tools, and light workshop machinery.

Q: How does the VFD-EL series protect connected motors?

A: It provides comprehensive electronic protections including high-precision overcurrent sensing, overload protection, overvoltage, undervoltage, and thermal cutoff safeguards.
