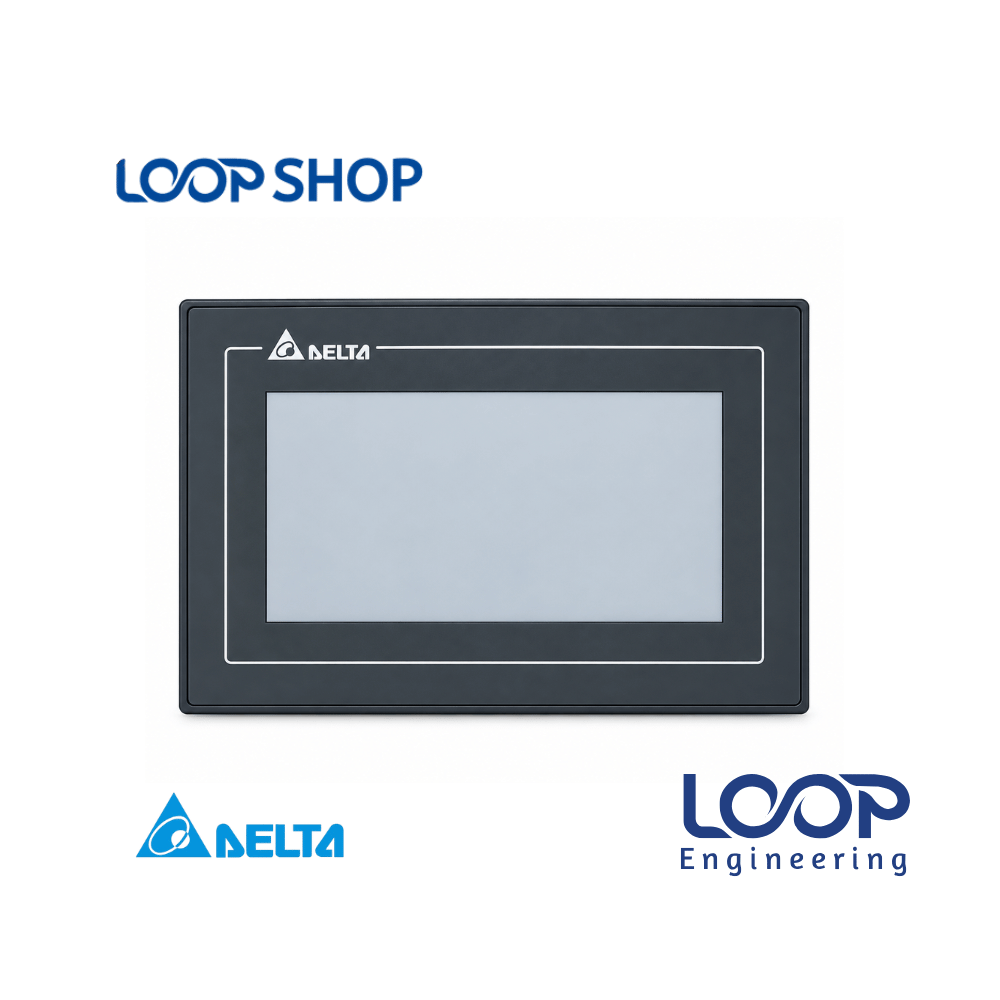

Delta DOP-110CS 10.1 Inch Touch Screen HMI Display Panel Industrial

Description

The Delta DOP-110CS is a large-format 10.1-inch TFT color touch screen Human Machine Interface (HMI) from Delta’s advanced DOP-100 series. Operating as an interactive operational gateway, this panel allows machine operators and plant technicians to directly control process cycles, adjust operational set points, and inspect real-time system metrics.

Engineered with high processing capability and configured using Delta’s predefined DOPSoft programming software, the DOP-110CS transforms complex machine data into clean graphic flows, active alarm notifications, and dynamic trend graphs. It provides a reliable visual control solution for manufacturing facilities, panel fabricators, and automation engineers across Bangladesh looking to optimize factory workflows and simplify equipment operation.

Key Features

• 10.1-Inch Color TFT Touch Screen: Provides an expansive widescreen viewing area for high-contrast graphic visualization and intuitive touch control.
• Multi-COM Serial Communication: Built-in COM serial ports supporting RS-232, RS-422, and RS-485 interfaces for multi-drop device communication.
• Dual USB Interfaces: Equipped with USB Host for convenient data logging/transfer via USB drive and USB Client for high-speed software programming.
• Advanced DOPSoft Integration: Supports customizable dynamic pictures, graphical trend charts, alarm elements, and multi-language screen layouts.
• IP65 Rated Front Protection: Tough front panel seal protects sensitive internal optics from dust ingress and water splashing.
• Multi-Device Compatibility: Interoperates seamlessly with PLCs, VFD inverters, servo drives with motors, sensors, and temperature controllers.

Technical Advantages

• Durable Construction: Industrial-grade enclosure engineered to withstand mechanical vibration, airborne oil particles, and severe ambient heat.
• Energy-Efficient Operation: Low power operational profile running on standard 24 VDC industrial power supplies.
• Broad Protocol Interoperability: Native communication drivers allow direct integration with Delta automation hardware as well as major international third-party PLCs.
• Easy Maintenance: Onscreen diagnostics, simple project updating via USB, and straightforward parameter editing lower technical support costs over time.

Applications

• Industrial & Factory Automation: Textile processing plants, pharmaceuticals, automated packaging lines, plastic molding machinery, and food & beverage processing.
• Commercial Systems: Large-scale water treatment facilities, centralized HVAC systems, and commercial building management boxes.
• Project Installation: Complete factory SCADA/HMI panel retrofits, custom OEM machinery fabrication, and industrial control panel projects.

Why Choose This Product?

• Proven Delta Reliability: Built to global industrial standards, ensuring long operational lifespans with consistent touch accuracy and screen stability.
• Enhanced Visual Clarity: Large 10.1-inch widescreen layout offers ample space to display complex operational diagrams without screen clutter.
• High Cost Effectiveness: Delivers large-screen interactive capabilities and multi-protocol serial communication at a competitive investment cost.
• After-Sales Support: Backed by product authenticity, competitive pricing, and technical support through LOOP Shop in Bangladesh.

Technical Specification Table

Features List

✓ Large 10.1-inch TFT color touch screen display

✓ Flexible serial communication ports (RS-232 / RS-422 / RS-485)

✓ USB Host & USB Client ports for logging and project transfer

✓ IP65 protected front bezel against dust and moisture

✓ Free Delta DOPSoft software for easy screen design

✓ Real-time trend graphs, alarm logging, and recipe management

✓ Energy-efficient 24 VDC industrial power input

Benefits For Customers

• Improves Machine Productivity: Large 10.1-inch screen allows operators to monitor multiple machine metrics and adjust operational set points on a single view.
• Reduces System Downtime: Dynamic real-time alarm visualizer enables fast identification and resolution of process faults.
• Streamlines Control Panel Design: Onboard multi-serial communication ports reduce the need for external protocol converters when connecting PLCs, inverters, and drives.
• Suitable for Bangladesh Environment: IP65 front rating protects internal electronics from high humidity, dust, and temperature fluctuations common in Bangladeshi factories.

Installation & Maintenance Guide

Installation Requirements:

1. Cut out the electrical control door panel according to the designated Delta 10.1-inch DOP series cutout dimensions.
2. Insert the HMI unit into the cutout and secure it firmly using the provided side panel clamps to establish an IP65 front seal.
3. Ensure adequate spacing behind the rear casing for natural ventilation and thermal dissipation.
4. Wire a clean 24 VDC regulated power supply with proper frame grounding to protect internal components against electrical surges.

Maintenance Tips:

1. Clean the display surface gently using a soft, clean dry cloth. Avoid harsh chemical sprays, alcohol, or abrasive cleaning materials.
2. Ensure surrounding cabinet ventilation slots remain free of dust accumulation.
3. Keep periodic backup copies of HMI project software and recipe files on an external USB flash drive.

Safety Instructions:

• Always turn off the main input power before carrying out wiring, terminal connections, or installation work.
• Verify 24 VDC input power supply polarity before applying power to prevent circuit board damage.
• Avoid pressing the touch panel with sharp tools, screwdrivers, or excessive force.

Frequently Asked Questions (FAQ)

Q: What is the price of Delta DOP-110CS 10.1 inch HMI in Bangladesh?

A: The price of the Delta DOP-110CS in Bangladesh varies depending on current stock levels and import costs. Please check the product listing on LOOP Shop or contact our customer support for an updated price quote.

Q: Where can I buy original Delta DOP-110CS in Bangladesh?

A: You can purchase genuine Delta DOP-110CS touch screen display HMIs online directly from LOOP Shop (loopshop.com.bd) with fast delivery across Bangladesh.

Q: What warranty does this product have?

A: The Delta DOP-110CS comes with standard manufacturer warranty coverage against operational defects, supported by LOOP Shop customer service.

Q: Is this product suitable for Bangladesh climate?

A: Yes, with an IP65 rated front panel and robust operating thermal tolerance, it is fully capable of continuous operation in Bangladesh industrial environments.

Q: How to install this product?

A: Insert the panel into the prepared door cutout on your control box, clamp it securely, connect your 24 VDC power supply and RS-232/RS-485 serial lines, and upload your project software via USB.

Q: What software is used to program the Delta DOP-110CS?

A: The Delta DOP series HMIs are programmed using Delta’s freely available DOPSoft configuration software.

Q: Does the Delta DOP-110CS support Ethernet connectivity?

A: No, the DOP-110CS model relies on serial communication ports (RS-232, RS-422, RS-485) and USB interfaces. If Ethernet is required, consider Delta DOP-100 series Ethernet variants.

Q: What is the display size of Delta DOP-110CS?

A: It features a large 10.1-inch widescreen TFT color touch screen display.

Q: What power supply voltage is required for operation?

A: It operates on a standard industrial 24 VDC power supply.

Q: Can this Delta HMI connect to non-Delta PLCs and VFDs?

A: Yes, Delta DOPSoft supports communication drivers for various popular third-party PLCs, inverters, and industrial controllers over serial connections.
