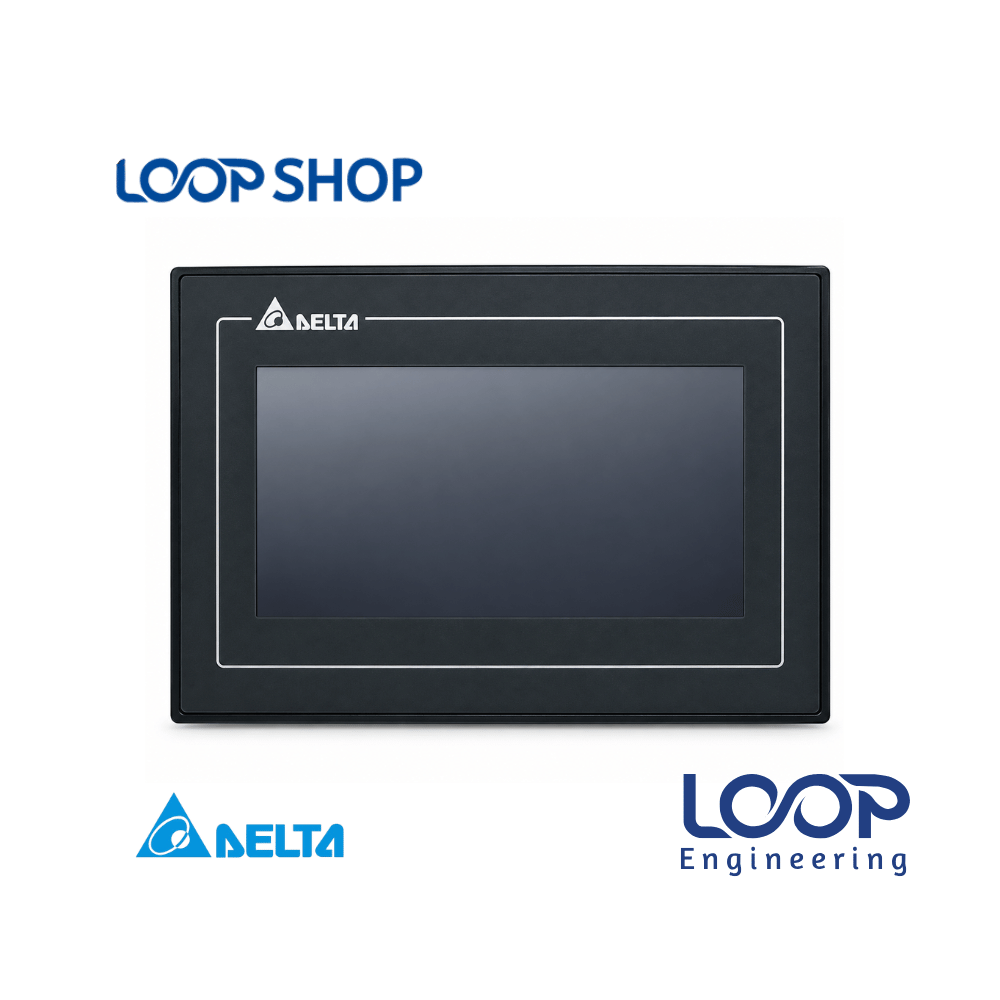

Delta DOP-107EV 7 Inch Ethernet Touch Screen HMI Display Panel Industrial

Description

The Delta DOP-107EV is a feature-rich 7-inch TFT color touch screen Human Machine Interface (HMI) from Delta’s advanced DOP-100 series. Designed to enable intuitive interaction between human operators and modern industrial automation systems, this unit serves as a centralized control and data display terminal for automated manufacturing facilities.

Equipped with a high-speed 800 MHz ARM Cortex-A8 processor and an integrated 10/100 Mbps Ethernet interface, the DOP-107EV provides fast data refresh rates and seamless network connectivity. Programmed using Delta’s free DOPSoft software, it translates complex machine telemetry into dynamic process diagrams, alarm management screens, and real-time trend charts. It is an essential control panel solution for factory engineers, system integrators, and OEM builders in Bangladesh seeking modern networked automation capabilities.

Key Features

• 7-Inch WVGA Color TFT Display: Delivers clear 800 x 480 pixel resolution with 65,536 colors and long-life LED backlighting.
• Built-in Ethernet Port: Features a 10/100 Mbps auto-sensing Ethernet port supporting remote monitoring, VNC access, and network integration.
• Multi-COM Serial Connectivity: Built-in COM serial interfaces supporting RS-232, RS-422, and RS-485 multi-drop networks.
• Dual USB Interfaces: Equipped with USB Host (Ver 2.0) for external drive data logging and USB Slave (Ver 2.0) for fast PC software downloading.
• High Memory Capacity: Features 256 MB Flash ROM and 256 MB RAM to store detailed graphical projects, alarm logs, and recipe databases.
• Built-in Multitone Buzzer: Provides immediate acoustic alarm notifications for critical system events.

Technical Advantages

• Fast Network Data Refresh: Isolated Ethernet circuitry ensures rapid, noise-immune communication with PLCs and SCADA networks.
• Durable Construction: Industrial IP65/NEMA4 front panel rating protects delicate optics and circuitry from dust, water splashes, and oil mist.
• Energy-Efficient Operation: Operates on low power consumption (Max 8.76 W) powered by an isolated 24 VDC supply.
• Broad Controller Compatibility: Native communication support for Delta DVP/AS/AH series PLCs alongside major international third-party controller brands.

Applications

• Industrial & Factory Automation: Textile machinery, plastics processing, food & beverage packaging lines, pharmaceuticals, and printing plants.
• Commercial Systems: Water treatment plants, central HVAC control panels, automated pump stations, and energy management setups.
• Project Installation: Factory SCADA network retrofits, OEM control cabinet fabrication, and custom PLC-HMI panel integrations.

Why Choose This Product?

• Global Delta Quality: Built to international standards (CE/UL), ensuring exceptional hardware durability and stable continuous operation.
• Enhanced Network Integration: Integrated Ethernet allows local and remote supervisory monitoring without requiring extra network expansion cards.
• High Cost Effectiveness: Combines widescreen WVGA graphics, high-speed processing, and Ethernet capability at a highly competitive price point.
• After-Sales Value: Supported by genuine stock availability, competitive pricing, and technical assistance via LOOP Shop in Bangladesh.

Technical Specification Table

Features List

✓ Clear 7-inch widescreen TFT color LCD touch screen (800 x 480)

✓ High-speed ARM Cortex-A8 800 MHz CPU

✓ Onboard 10/100 Mbps Ethernet port for networked control

✓ Dual serial COM ports (RS-232, RS-422, RS-485)

✓ USB Host and USB Slave interfaces

✓ IP65 / NEMA4 ingress protection on front panel

✓ Free Delta DOPSoft programming software support

Benefits For Customers

• Enables Remote Monitoring: Built-in Ethernet port allows remote monitoring and VNC connections across plant networks.
• Improves Machine Management: Widescreen 7-inch display renders complex process diagrams and alarm logs clearly, reducing operator errors.
• Accelerates System Diagnostics: Real-time visual alarms and trend displays enable maintenance teams to resolve equipment issues quickly.
• Suitable for Bangladesh Climate: IP65 front protection protects internal components against ambient humidity, dust, and temperature fluctuations in Bangladesh factories.

Installation & Maintenance Guide

Installation Requirements:

1. Prepare a panel cutout on the cabinet door measuring 196.9 mm (W) × 142.9 mm (H).
2. Insert the HMI unit into the cutout and secure it with the provided panel clamps using a tightening torque between 0.5 N-m and 0.7 N-m to achieve an IP65 seal.
3. Maintain at least 60 mm clearance behind the rear housing for effective heat dissipation.
4. Wire an isolated 24 VDC power supply with proper grounding (FG terminal) using 24–12 AWG wire gauge.

Maintenance Tips:

1. Wipe the touch screen surface using a soft, clean dry cloth. Avoid abrasive materials, alcohol, or chemical solvents.
2. Ensure control cabinet ventilation slots remain clean and dust-free to prevent thermal accumulation.
3. Keep periodic backups of HMI software project files on a USB drive.

Safety Instructions:

• Always turn off input power before performing wiring connections or installation work.
• Ensure proper 24 VDC isolated power wiring to avoid internal board damage.
• Do not press the touch screen using sharp tools, screwdrivers, or excessive force.

Frequently Asked Questions (FAQ)

Q: What is the price of Delta DOP-107EV Ethernet HMI in Bangladesh?

A: The price of the Delta DOP-107EV in Bangladesh varies based on import costs and current stock availability. Please check the product page on LOOP Shop or contact our customer support for an updated price quote.

Q: Where can I buy original Delta DOP-107EV in Bangladesh?

A: You can purchase genuine Delta DOP-107EV touch screen HMIs directly online from LOOP Shop (loopshop.com.bd) with fast delivery across Bangladesh.

Q: What warranty does this product have?

A: The Delta DOP-107EV comes with standard manufacturer warranty against operational defects, supported by LOOP Shop customer service.

Q: Is this product suitable for Bangladesh climate?

A: Yes, featuring an IP65/NEMA4 rated front panel and operating temperature tolerance up to 50°C, it is well-suited for Bangladesh’s hot and dusty industrial environments.

Q: How to install this product?

A: Mount the unit into a 196.9 x 142.9 mm cutout on your control door, secure panel clamps, connect isolated 24 VDC power and Ethernet/serial cables, and upload your project file.

Q: Does the Delta DOP-107EV have a built-in Ethernet port?

A: Yes, the DOP-107EV features a built-in 10/100 Mbps auto-sensing Ethernet port.

Q: What software is used to program the Delta DOP-107EV?

A: The Delta DOP-100 series HMIs are programmed using Delta’s freely available DOPSoft software.

Q: What is the display size and resolution of DOP-107EV?

A: It features a 7-inch TFT LCD color screen with a resolution of 800 × 480 pixels (WVGA).

Q: What is the difference between Delta DOP-107EV and DOP-107CV?

A: The DOP-107EV includes an integrated Ethernet port, whereas the DOP-107CV model relies strictly on serial communication ports.

Q: What power supply voltage is required?

A: It requires an isolated 24 VDC power supply (-15% to +15%).
