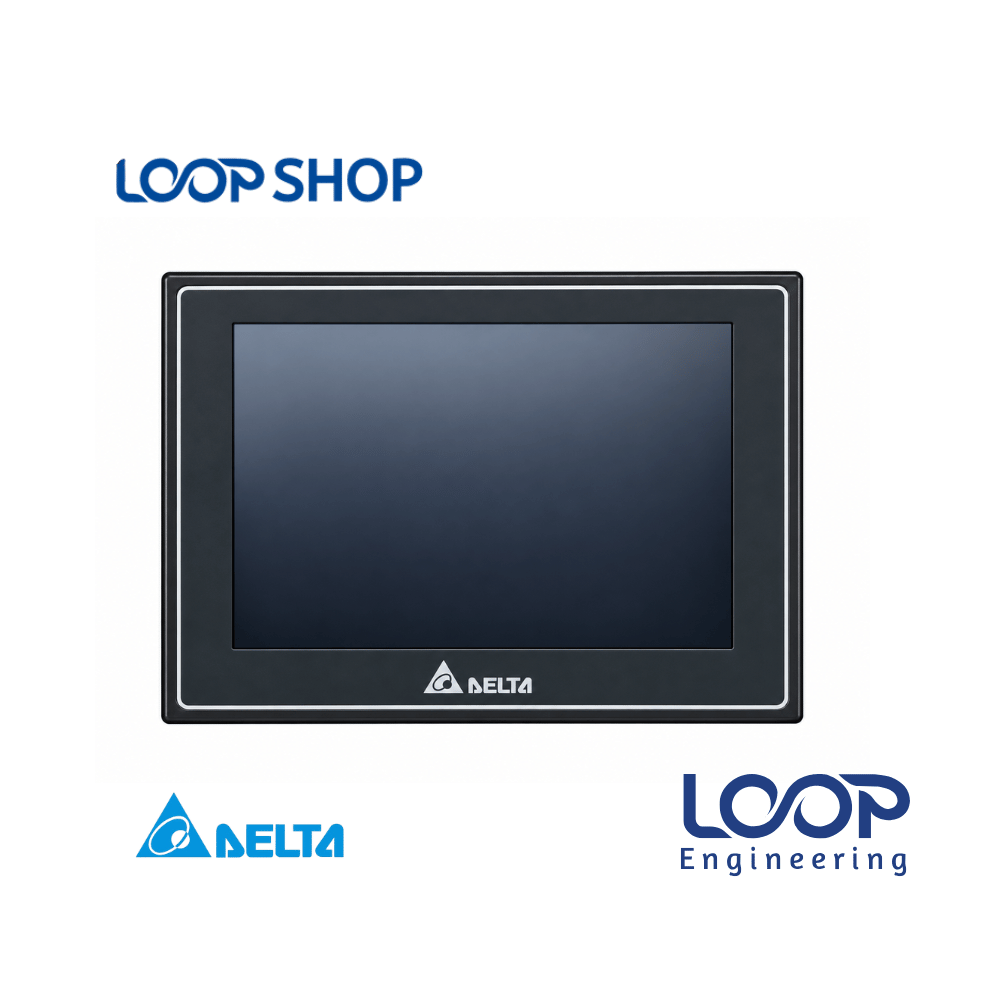

Delta DOP-107EG 7 Inch Ethernet Touch Screen HMI Display Panel Industrial

Description

The Delta DOP-107EG is an advanced 7-inch TFT color touch screen Human Machine Interface (HMI) from Delta’s high-performance DOP-100 series. Designed to enable intuitive interaction between operators and modern automated control systems, this unit serves as a centralized terminal to monitor real-time process telemetry, execute machine commands, and track system setpoints.

Engineered with a high-speed ARM Cortex-A8 processor and a high-brightness 65,536-color LCD panel, the DOP-107EG delivers high-resolution visual displays for real-time monitoring and control. Supporting smart cloud features such as VNC remote monitoring, FTP, and Email alerts, it enables plant technicians and system integrators across Bangladesh to build flexible, high-efficiency smart production setups while significantly cutting maintenance and wiring costs.

Key Features

• 7-Inch High-Brightness TFT LCD: Renders vivid 65,536-color graphics for easy parameter entry, dynamic trend charts, and alarm monitoring.
• High-Speed Cortex-A8 Processor: Delivers rapid screen switching, fast data acquisition, and responsive touch controls.
• Standard Ethernet Port: Built-in Ethernet port enables rapid communication with PLCs, remote SCADA systems, and cloud management tools.
• Smart Cloud Protocols: Supports VNC for remote screen access, FTP data transfers, Email alert notifications, and NTP network time synchronization.
• Multi-Communication Interfaces: Features onboard serial communication ports alongside Ethernet and USB interfaces for broad multi-device networking.
• User-Friendly Screen Editing: Configured via Delta’s intuitive DOPSoft software for creating visual icons and custom monitoring screens.

Technical Advantages

• Durable Industrial Construction: Heavy-duty front panel structure engineered to withstand continuous mechanical vibration, electrical noise, and industrial contaminants.
• Energy-Efficient Operation: Operates on an energy-saving 24 VDC industrial power source, minimizing internal panel heat generation.
• Broad Ecosystem Compatibility: Connects seamlessly to Delta PLCs, AC drives, servo systems, temperature controllers, and third-party controllers.
• Reduced Operating & Maintenance Expenses: Simplifies wiring layouts, eliminates complex cable connections, and allows remote troubleshooting via VNC to prevent downtime.

Applications

• Industrial & Factory Automation: Textile machinery, plastic extruders, pharmaceutical production equipment, food & beverage packaging, and printing machinery.
• Commercial Systems: Water treatment management systems, central HVAC monitoring boxes, commercial pump controllers, and boiler automation.
• Project Installation: Factory SCADA network retrofits, OEM machinery fabrication, and custom control panel building.

Why Choose This Product?

• Proven Delta Reliability: Built to rigorous international standards, ensuring consistent long-term touch response and low failure rates under heavy industrial shifts.
• Cloud & Smart Production Ready: VNC remote monitoring and network functionalities allow factory managers to inspect process metrics from remote workstations.
• High Cost Effectiveness: Reduces overall system development time, installation labor, and long-term maintenance costs at a competitive price point.
• After-Sales Support: Backed by product authenticity, fast nationwide delivery, and technical assistance through LOOP Shop in Bangladesh.

Technical Specification Table

Features List

✓ Bright 7-inch TFT LCD color touch screen display (65,536 colors)

✓ High-speed ARM Cortex-A8 processor for fast response times

✓ Standard Ethernet port for fast machine-to-machine communication

✓ Supports VNC remote monitoring, FTP, Email alerts, and NTP

✓ IP65 protected front bezel against industrial dust and moisture

✓ Onboard serial ports (RS-232 / RS-422 / RS-485) and USB interfaces

✓ Configured using user-friendly Delta DOPSoft software

Benefits For Customers

• Enables Remote Machine Control: VNC support allows maintenance engineers to monitor and adjust machine parameters remotely via PC or handheld devices.
• Reduces Installation Costs: Onboard Ethernet and multi-serial interfaces reduce external converter requirements and simplify panel cabling.
• Accelerates System Debugging: Real-time alarm logs, trend graphs, and Email notifications enable technicians to resolve faults before system shutdowns occur.
• Suitable for Bangladesh Operating Conditions: IP65 front panel seal protects internal circuits from dust accumulation, high humidity, and thermal variations common in Bangladesh plants.

Installation & Maintenance Guide

Installation Requirements:

1. Prepare a clean cutout on the cabinet door according to the official Delta 7-inch DOP series panel cutout dimensions.
2. Fit the unit into the cutout and secure it using the provided panel mounting clamps to establish a tight IP65 front seal.
3. Ensure adequate spacing behind the rear housing for natural heat dissipation and cable routing.
4. Supply a regulated 24 VDC power line with proper frame grounding to protect electronic components against electrical surges.

Maintenance Tips:

1. Wipe the display screen gently using a soft, clean dry cloth. Avoid using harsh chemical sprays, alcohol, or abrasive cleaning pads.
2. Clean surrounding cabinet air vents periodically to maintain effective heat transfer.
3. Keep backed-up copies of HMI screen project files on an external USB drive or computer storage.

Safety Instructions:

• Always turn off the main input power before conducting wiring, terminal connections, or installation work.
• Verify 24 VDC input power supply polarity before applying power to prevent internal circuit board damage.
• Do not press or operate the touch panel using sharp tools, screwdrivers, or excessive physical force.

Frequently Asked Questions (FAQ)

Q: What is the price of Delta DOP-107EG Ethernet HMI in Bangladesh?

A: The price of the Delta DOP-107EG in Bangladesh varies based on current import costs and stock levels. Please check the product page on LOOP Shop or contact our customer support for an updated price quote.

Q: Where can I buy original Delta DOP-107EG in Bangladesh?

A: You can purchase genuine Delta DOP-107EG touch screen HMIs directly online from LOOP Shop (loopshop.com.bd) with fast delivery across Bangladesh.

Q: What warranty does this product have?

A: The Delta DOP-107EG comes with standard manufacturer warranty coverage against operational defects, supported by LOOP Shop customer service.

Q: Is this product suitable for Bangladesh climate?

A: Yes, featuring an IP65 rated front panel and robust operating thermal resistance, it is fully equipped for continuous operation in Bangladesh industrial environments.

Q: How to install this product?

A: Mount the panel into the designated door cutout on your control box, clamp it securely, connect your 24 VDC power lines and Ethernet/serial communication cables, and upload your project software.

Q: Does the Delta DOP-107EG support VNC remote monitoring?

A: Yes, the DOP-100 series supports VNC (Virtual Network Computing), allowing operators to view and manage the HMI screen remotely over Ethernet.

Q: What processor is used in the Delta DOP-107EG?

A: It is powered by a high-speed ARM Cortex-A8 processor.

Q: What software is used to program the Delta DOP-107EG?

A: The Delta DOP series HMIs are programmed using Delta’s freely available DOPSoft configuration software.

Q: What power supply voltage is required for operation?

A: It operates on a standard industrial 24 VDC power supply.

Q: Can this Delta HMI connect to non-Delta PLCs?

A: Yes, Delta DOPSoft supports communication drivers for various popular third-party PLCs, VFDs, and industrial controllers over serial and Ethernet protocols.
