Delta DOP-103WQ 4.3 Inch Touch Screen HMI Display Panel Industrial

Description

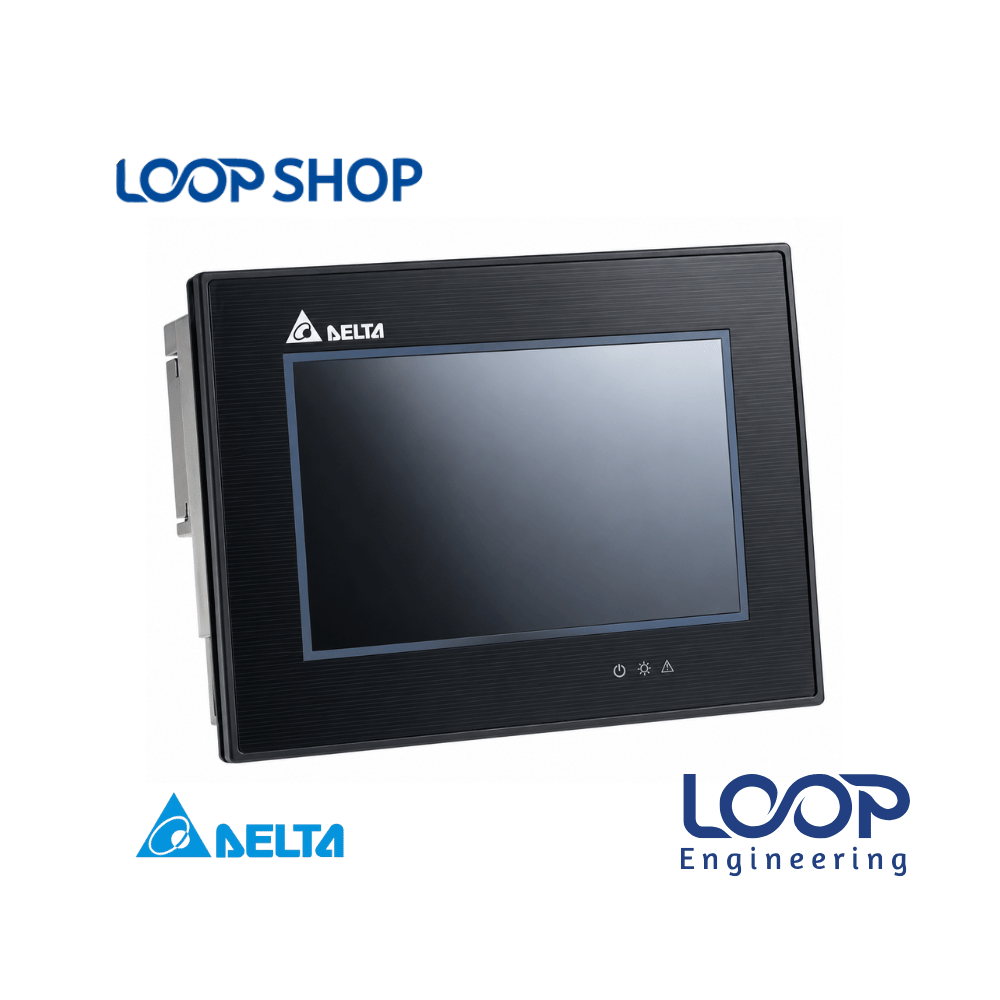

The Delta DOP-103WQ is a compact 4.3-inch TFT color touch screen Human Machine Interface (HMI) from Delta’s advanced DOP-100 series. Designed to facilitate seamless interaction between human operators and automated machine controls, this unit serves as a centralized terminal for monitoring real-time system metrics, modifying process setpoints, and managing machine operational cycles.

Configured via Delta’s intuitive DOPSoft software, the DOP-103WQ translates complex controller communication into dynamic visual diagrams, active alarm alerts, and historical trend graphs. It provides a highly dependable operator interface solution for OEM equipment builders, panel fabricators, and factory maintenance personnel across Bangladesh seeking to optimize control workflows within space-constrained enclosures.

Key Features

• 4.3-Inch Color TFT LCD: Bright color touch display providing high-contrast visual monitoring and responsive touch operation.
• Multi-COM Serial Communication: Integrated serial interfaces supporting RS-232, RS-422, and RS-485 multi-drop communication protocols.
• DOPSoft Software Integration: Predefined user-friendly screen editor for fast picture editing, graphical trend creation, and alarm element configuration.
• Data Upload/Download Support: Easily manage application programs, software updates, and project recipes.
• IP65 Front Panel Ingress Protection: Rugged front bezel structure prevents moisture, oil splashes, and airborne dust from entering internal optics.
• Broad Ecosystem Interoperability: Native driver compatibility with Delta PLCs, VFD inverters, servo systems, and temperature controllers.

Technical Advantages

• Durable Industrial Construction: Engineered for long-term physical durability under continuous factory vibration and high thermal environments.
• Energy-Efficient Power Profile: Operates on an energy-saving 24 VDC industrial power input, reducing control cabinet thermal load.
• Wide Controller Driver Support: Communicates seamlessly with Delta equipment as well as major international third-party PLCs.
• Easy Maintenance & Field Setup: Onscreen parameter configuration, simple project uploading, and self-diagnostics reduce field engineering overhead.

Applications

• Industrial & Factory Automation: Textile equipment, plastic processing, automatic packaging units, pharmaceuticals, and food production lines.
• Commercial Systems: Water purification plants, boiler control boxes, commercial pump sets, and HVAC monitoring panels.
• Project Installation: OEM machinery fabrication, compact control cabinet retrofits, and custom PLC-HMI panel integrations.

Why Choose This Product?

• Proven Delta Reliability: Built to global industrial standards, ensuring long hardware lifespans, stable touch sensitivity, and low failure rates.
• Space-Saving Design: Compact 4.3-inch layout fits into small enclosure cutouts where cabinet mounting space is limited.
• High Cost Effectiveness: Combines color touch graphics, multi-protocol serial communication, and IP65 protection at an accessible price point.
• After-Sales Support: Backed by product authenticity, fast nationwide delivery, and technical guidance through LOOP Shop in Bangladesh.

Technical Specification Table

Features List

✓ Vibrant 4.3-inch TFT color LCD touch screen

✓ Multi-protocol serial ports (RS-232 / RS-422 / RS-485)

✓ Free Delta DOPSoft software for intuitive screen configuration

✓ IP65 protected front panel against dust and liquid splash

✓ Real-time trend graphs, dynamic graphics, and alarm elements

✓ Energy-efficient 24 VDC industrial power requirement

✓ Compact form factor for small electrical cabinet doors

Benefits For Customers

• Improves Machine Productivity: Allows operators to adjust setpoints, track process trends, and control machine cycles directly from a single touch display.
• Accelerates Fault Diagnostics: Integrated alarm alerts allow plant maintenance teams to identify and resolve operational faults quickly.
• Saves Enclosure Space: Compact 4.3-inch bezel fits easily into small control boxes and OEM machinery panels.
• Suitable for Bangladesh Operating Conditions: Sealed IP65 front structure protects internal electronics from ambient dust, humidity, and thermal variations common in Bangladesh factories.

Installation & Maintenance Guide

Installation Requirements:

1. Cut out the electrical cabinet door panel according to the designated Delta 4.3-inch DOP series mounting dimensions.
2. Insert the HMI unit into the cutout and secure it tightly using the provided mounting clamps to establish an IP65 front seal.
3. Ensure adequate spacing behind the rear housing for natural heat dissipation and cable routing.
4. Wire a regulated 24 VDC industrial power source with proper frame grounding to protect electronic components against power transients.

Maintenance Tips:

1. Clean the display surface gently using a soft, clean dry cloth. Avoid harsh chemical cleaners, alcohol, or abrasive pads.
2. Periodically clean surrounding cabinet ventilation slots to maintain adequate air cooling.
3. Keep backed-up copies of HMI screen project software on a USB drive or PC for quick field replacement setup.

Safety Instructions:

• Always turn off main input power before conducting wiring, terminal connections, or installation work.
• Verify 24 VDC power supply polarity before applying power to prevent internal circuit board damage.
• Avoid pressing the touch screen with sharp tools, screwdrivers, or excessive force.

Frequently Asked Questions (FAQ)

Q: What is the price of Delta DOP-103WQ HMI in Bangladesh?

A: The price of the Delta DOP-103WQ in Bangladesh depends on import tariffs and current stock levels. Please check the product listing on LOOP Shop or contact our customer support for an updated price quote.

Q: Where can I buy original Delta DOP-103WQ in Bangladesh?

A: You can purchase genuine Delta DOP-103WQ touch screen display HMIs online directly from LOOP Shop (loopshop.com.bd) with fast delivery service across Bangladesh.

Q: What warranty does this product have?

A: The Delta DOP-103WQ comes with standard manufacturer warranty coverage against operational defects, supported by LOOP Shop customer service.

Q: Is this product suitable for Bangladesh climate?

A: Yes, featuring an IP65 rated front panel and robust operating thermal resistance, it is fully equipped for continuous operation in Bangladesh industrial environments.

Q: How to install this product?

A: Mount the panel into the designated door cutout on your control box, clamp it securely, attach your 24 VDC power lines and RS-232/RS-485 serial cables, and upload your project software.

Q: What software is used to program the Delta DOP-103WQ?

A: The Delta DOP series HMIs are programmed using Delta’s freely available DOPSoft configuration software.

Q: Does the Delta DOP-103WQ have a built-in Ethernet port?

A: No, the DOP-103WQ model relies on serial communication ports (RS-232, RS-422, RS-485). If Ethernet connectivity is required, consider Delta DOP-100 series Ethernet variants.

Q: What is the display size of Delta DOP-103WQ?

A: It features a compact 4.3-inch TFT LCD color touch screen display.

Q: What power supply voltage is required for operation?

A: It operates on a standard industrial 24 VDC power supply.

Q: Can this Delta HMI connect to non-Delta PLCs?

A: Yes, Delta DOPSoft supports communication drivers for various popular third-party PLCs, VFDs, and industrial controllers over serial interfaces.
