Delta DOP-103BQ 4.3 Inch Touch Screen HMI Display Panel Industrial

Description

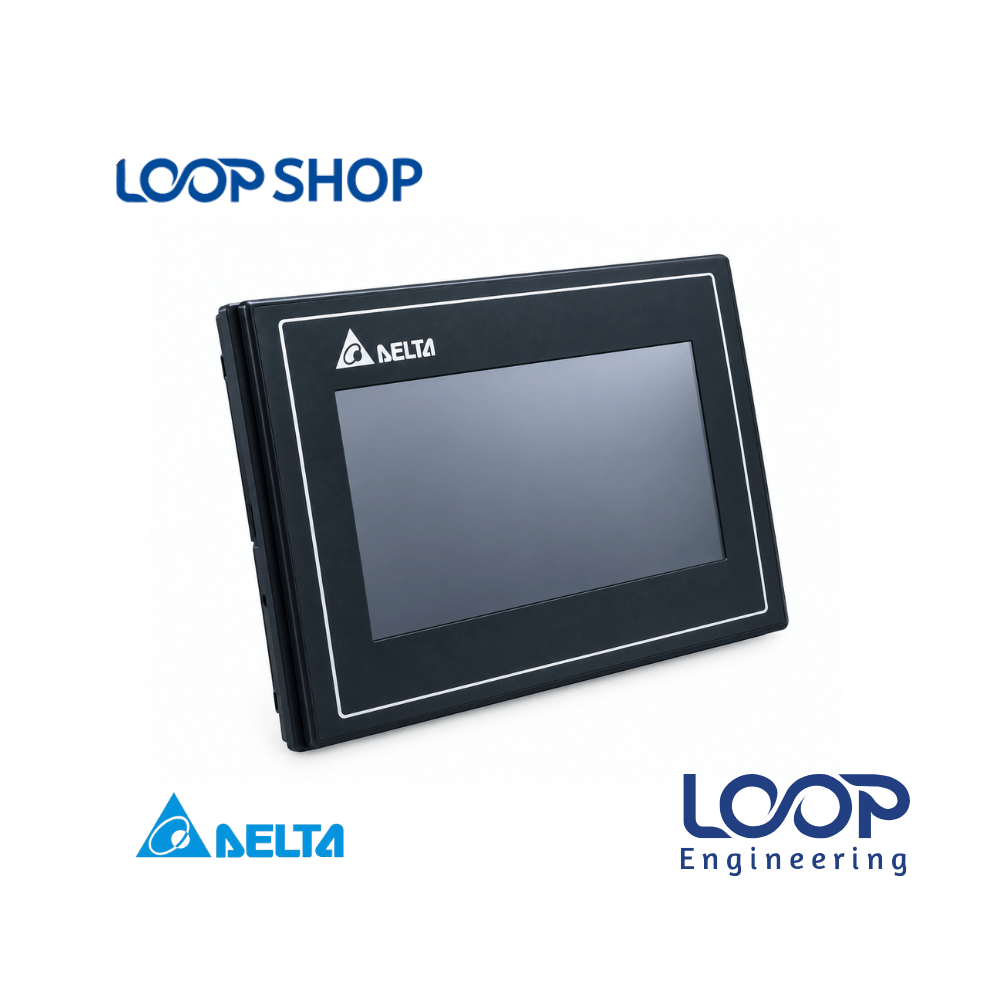

The Delta DOP-103BQ is a compact 4.3-inch TFT color touch screen Human Machine Interface (HMI) from Delta’s advanced DOP-100 series. Designed to enable intuitive interaction between human operators and modern automated machinery, this display panel acts as a centralized terminal to monitor operational metrics, execute process commands, and manage system setpoints.

Configured using Delta’s user-friendly DOPSoft programming software, the DOP-103BQ converts complex controller data and sensor inputs into dynamic visual graphs, active system alarms, and responsive touch controls. It provides a reliable visual interface for control panel fabricators, OEM machine builders, and factory maintenance teams across Bangladesh looking to optimize operational workflows in space-restricted environments.

Key Features

• 4.3-Inch Color TFT LCD: Bright touch screen display rendering 65,536 colors for high-contrast visual display and responsive touch navigation.
• Multi-COM Serial Ports: Onboard serial communication ports supporting RS-232, RS-422, and RS-485 multi-drop networks.
• Dual USB Interfaces: Includes USB Host for external drive data transfers and USB Client for high-speed PC programming uploads and downloads.
• DOPSoft Software Compatibility: Enables easy editing of graphics, dynamic trend charts, alarm logging, and multi-language screen localization.
• IP65 Front Ingress Protection: Seals the front bezel against industrial dust accumulation and liquid splash.
• Broad Delta Ecosystem Integration: Integrates seamlessly with Delta PLCs, AC drives, servo systems, temperature controllers, and rotary encoders.

Technical Advantages

• Durable Enclosure Construction: Industrial-grade housing designed to resist ambient mechanical vibrations and electromagnetic noise in plant environments.
• Low Power Draw: Operates on an energy-efficient 24 VDC industrial power source, minimizing internal panel heat build-up.
• Broad Protocol Interoperability: Native communication drivers allow direct connection with Delta hardware as well as major third-party industrial PLCs.
• Easy Maintenance & Field Setup: Simple screen uploads/downloads via USB, onscreen parameter setup, and rapid project commissioning reduce engineering overhead.

Applications

• Industrial & Factory Automation: Textile machines, small packaging units, plastic injection/extrusion, pharmaceutical equipment, and food processing lines.
• Commercial Systems: Water treatment management, automated pump stations, boiler control cabinets, and commercial HVAC monitoring.
• Project Installation: Compact OEM panel fabrication, machinery retrofits, and custom PLC-HMI control box integrations.

Why Choose This Product?

• Proven Delta Reliability: Engineered to strict international standards, ensuring stable long-term continuous operation with minimal failure rates.
• Compact & Space Efficient: Fits comfortably into small electrical enclosure doors without cluttering control cabinets.
• High Cost Effectiveness: Combines vibrant color touchscreen graphics, multi-serial communication, and rugged IP65 protection at an accessible price point.
• After-Sales Support: Backed by product authenticity, competitive pricing, and reliable customer guidance through LOOP Shop in Bangladesh.

Technical Specification Table

Features List

✓ Vibrant 4.3-inch TFT color LCD touch screen display

✓ Onboard serial ports supporting RS-232, RS-422, and RS-485

✓ USB Host and USB Client ports for easy logging and project transfer

✓ IP65 protected front bezel against industrial dust and splash

✓ Free Delta DOPSoft software for intuitive screen configuration

✓ Real-time trend graphs, dynamic graphics, and alarm management

✓ Compact form factor ideal for space-conscious control panels

Benefits For Customers

• Improves Machine Operation: Operators can monitor live machinery data, view real-time process trends, and adjust parameters easily on a single compact screen.
• Reduces Troubleshooting Time: Instant visual alarm alerts enable maintenance technicians to identify and resolve operational errors quickly.
• Saves Enclosure Mounting Space: Compact 4.3-inch layout fits smoothly into small control panel doors and compact OEM machinery boxes.
• Suitable for Bangladesh Operating Environment: IP65 sealed front panel protects sensitive internal optics from dust, moisture, and high thermal variations common in Bangladesh plants.

Installation & Maintenance Guide

Installation Requirements:

1. Cut out the control cabinet door according to the official Delta 4.3-inch DOP series panel cutout dimensions.
2. Insert the HMI unit into the cutout and secure it firmly using the provided side mounting clamps to maintain an IP65 front seal.
3. Ensure adequate spacing behind the rear housing for natural heat dissipation and cable bend radius.
4. Connect a regulated 24 VDC industrial power source with proper frame grounding to protect internal circuits from power transients.

Maintenance Tips:

1. Wipe the front display surface gently with a soft, clean dry cloth. Avoid using harsh chemical sprays, alcohol, or abrasive pads.
2. Periodically clean surrounding cabinet ventilation slots to maintain adequate cooling.
3. Maintain backed-up copies of HMI screen project files on a USB drive or PC for quick replacement setup.

Safety Instructions:

• Always turn off main power to the electrical panel before performing wiring or installation work.
• Verify 24 VDC input power supply polarity before applying power to prevent internal circuitry damage.
• Do not operate or press the touch panel using sharp tools, screwdrivers, or excessive force.

Frequently Asked Questions (FAQ)

Q: What is the price of Delta DOP-103BQ HMI in Bangladesh?

A: The price of the Delta DOP-103BQ in Bangladesh depends on import tariffs and current stock levels. Please check the product page on LOOP Shop or contact our customer support for an updated price quote.

Q: Where can I buy original Delta DOP-103BQ in Bangladesh?

A: You can purchase genuine Delta DOP-103BQ touch screen display HMIs directly online from LOOP Shop (loopshop.com.bd) with fast delivery across Bangladesh.

Q: What warranty does this product have?

A: The Delta DOP-103BQ comes with standard manufacturer warranty coverage against operational defects, supported by LOOP Shop customer service.

Q: Is this product suitable for Bangladesh climate?

A: Yes, featuring an IP65 rated front panel and robust operating thermal resistance, it is fully equipped for continuous operation in Bangladesh industrial environments.

Q: How to install this product?

A: Mount the panel into the designated door cutout on your control box, clamp it securely, attach your 24 VDC power lines and RS-232/RS-485 serial cables, and upload your project software via USB.

Q: What software is used to program the Delta DOP-103BQ?

A: The Delta DOP series HMIs are programmed using Delta’s freely available DOPSoft configuration software.

Q: Does the Delta DOP-103BQ have a built-in Ethernet port?

A: No, the DOP-103BQ model relies on serial communication ports (RS-232, RS-422, RS-485) and USB interfaces. If Ethernet is required, consider Delta DOP-100 series Ethernet variants.

Q: What is the screen size of Delta DOP-103BQ?

A: It features a compact 4.3-inch TFT LCD color touch screen display.

Q: What power supply voltage is required for operation?

A: It operates on a standard industrial 24 VDC power supply.

Q: Can this Delta HMI connect to non-Delta PLCs?

A: Yes, Delta DOPSoft supports communication drivers for various popular third-party PLCs, VFDs, and industrial controllers over serial interfaces.
