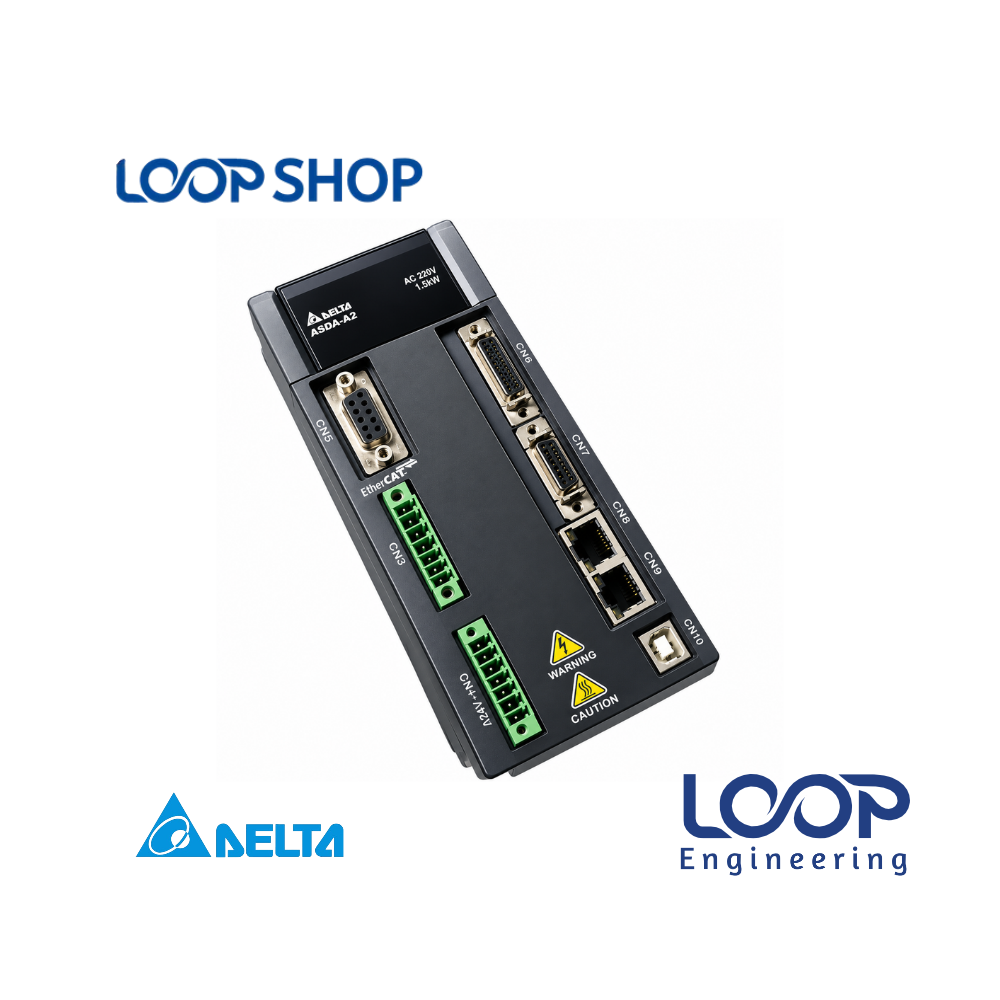

Delta ASD-A2-1521-L 1.5kW A2 AC Servo Drive High Precision Industrial

Description

The Delta 1.5kW A2 Series AC Servo Drive (ASD-A2-1521-L) is an industrial-grade, high-performance motion control driver designed to deliver micrometer-level positioning accuracy, fast dynamic response, and smooth torque execution. Serving as the central control unit for matching Delta ECMA series AC servo motors, this 220V drive translates digital and analog controller commands into precise electrical currents to regulate motor speed, torque, and rotational position.

Engineered for machinery builders, panel integrators, and industrial technicians across Bangladesh, the ASD-A2-1521-L integrates advanced motion capabilities that reduce reliance on external motion controllers. Whether upgrading existing CNC routing equipment, building high-speed flying shear packaging systems, or automating textile machinery, this drive guarantees continuous operational stability and high efficiency under demanding production cycles.

Key Features

• 1.5kW (1500W) rated power output designed for medium-power industrial automation tasks
• Compatible with Single-Phase and 3-Phase 200V–230V AC power input configurations
• Standard ‘L’ model supporting Pulse Train input, Analog Voltage control, and RS-232/RS-485 serial communication
• Built-in Electronic Cam (E-CAM) functionality supporting up to 720 points for smooth path interpolation
• Integrated PR Mode offering 64 programmable position command paths and 35 homing modes
• Supports 20-bit incremental and 17-bit absolute encoder feedback for micro-positioning accuracy
• Built-in dynamic braking circuit and multi-stage electronic protection routines

Technical Advantages

• High Efficiency: Space Vector Pulse Width Modulation (SVPWM) control algorithm optimizes motor power delivery and reduces electrical loss.
• Durable Construction: Built with heavy-duty heat sinks and industrial IP20 enclosure housing to endure continuous thermal loads.
• Safety Protection: Comprehensive electronic guard circuits shield against overcurrent, overvoltage, undervoltage, overheat, and short circuit conditions.
• Energy Saving Operation: Dynamic current management adjusts power consumption proportionally relative to mechanical load torque.
• Easy Maintenance: Front-panel LED status display, removable terminal blocks, and PC-based ASDA-Soft software diagnostics via USB/serial ports simplify setup and troubleshooting.

Applications

• Industrial: CNC milling axes, engraving machinery, automated assembly cells, flying shear/rotary cutoff mechanisms, and robotic gantries.
• Factory: High-speed packaging lines, textile spinning/knitting machines, labeling equipment, and printing presses.
• Project Installation: Automated material handling systems, linear positioning tables, and custom factory automation projects.

Why Choose This Product?

• Proven Reliability: Engineered by Delta Electronics, a world leader in power management and industrial automation systems.
• High Performance: Rapid response frequency and low settling time eliminate positioning deviation and vibration chatter.
• Cost Effectiveness: Integrated 64-path PR mode and E-CAM reduce the need for separate PLC motion modules and complex panel wiring.
• After-Sales Value: Available via loopshop.com.bd with localized customer support, technical documentation, and fast delivery across Bangladesh.

Technical Specification Table

Features List

✓ High-efficiency 1.5kW 220V AC servo drive

✓ Built-in PR mode with 64 programmable position paths

✓ Integrated Electronic Cam (E-CAM) with up to 720 points

✓ Supports 20-bit incremental encoder feedback

✓ RS-232, RS-485, and USB communication interfaces

Benefits For Customers

• Reduces Electricity Cost: SVPWM vector control limits unnecessary reactive energy draw during continuous dynamic operation.
• Improves Operational Reliability: Precise closed-loop position control eliminates positional drift and reduces production defects.
• Saves Maintenance Cost: Software-driven Electronic Cam profiles eliminate mechanical gear wear and maintenance overhead.
• Suitable for Bangladesh Environment: Rugged IP20 housing handles ambient industrial cabinet temperatures and humidity in BD.

Installation & Maintenance Guide

Installation Requirements:

• Mount the drive unit vertically inside a clean, well-ventilated control enclosure to allow natural convection cooling.
• Maintain recommended clearance margins above, below, and adjacent to the unit per Delta panel guidelines.
• Connect AC input power using proper circuit protection fuses and bond ground terminals securely to prevent shock risks.
• Use multi-core shielded twisted-pair cables for pulse input, analog signals, and encoder feedback to mitigate electromagnetic interference.

Maintenance Tips:

• Periodically clean heat sink cooling channels to clear ambient factory dust and ensure efficient heat dissipation.
• Check terminal screws and quick-connect plugs routinely to confirm secure physical and electrical contact.
• Ensure control panel cooling fans operate properly to keep internal enclosure temperatures within safe limits.

Safety Instructions:

• Always disconnect main line AC power before performing any terminal wiring, maintenance, or inspection work.
• Wait at least 10 minutes post power-off to allow internal high-voltage capacitors to fully discharge before touching connections.
• Never connect 3-phase AC main power directly to the motor output terminals (U, V, W), as this will cause catastrophic internal drive damage.

Frequently Asked Questions (FAQ)

Q: What is the price of Delta 1.5kW A2 Servo Drive ASD-A2-1521-L in Bangladesh?

A: Prices depend on import tariff rates and live stock availability. Please check loopshop.com.bd or contact our customer support team for an updated quotation.

Q: Where can I buy Delta 1.5kW Servo Drive ASD-A2-1521-L in Bangladesh?

A: You can purchase genuine Delta ASD-A2-1521-L servo drives online directly through loopshop.com.bd with reliable nationwide delivery in BD.

Q: What input power voltage does ASD-A2-1521-L accept?

A: This drive operates on 200V to 230V AC line power, accepting either Single-Phase or 3-Phase inputs.

Q: What warranty does this product have?

A: It includes a standard manufacturer warranty covering technical and manufacturing defects. Check loopshop.com.bd for specific warranty terms.

Q: Is this servo drive suitable for the Bangladesh industrial climate?

A: Yes, its protective enclosure and industrial heat sink design make it well-suited for warm panel conditions in Bangladesh.

Q: Which servo motor models pair with ASD-A2-1521-L?

A: It is designed to drive matching 1.5kW Delta ECMA series AC servo motors (such as model ECMA-E11315RS or ECMA-E21315RS).

Q: How to install this product?

A: Mount vertically inside a panel, connect AC input lines, ground, motor phases (U, V, W), and encoder feedback connectors. Configuration is completed via Delta ASDA-Soft software.

Q: What does the “L” suffix in ASD-A2-1521-L mean?

A: The “L” suffix designates the standard version supporting Pulse Train input, Analog command, and RS-232/RS-485 communication.

Q: Can this drive run positioning routines without a master motion PLC?

A: Yes, the integrated PR mode (64 paths) and E-CAM functionality enable autonomous motion sequences directly from the drive.

Q: Is technical guidance provided post-purchase in BD?

A: Yes, loopshop.com.bd provides sales verification, datasheets, and technical support for industrial products bought through our platform.
