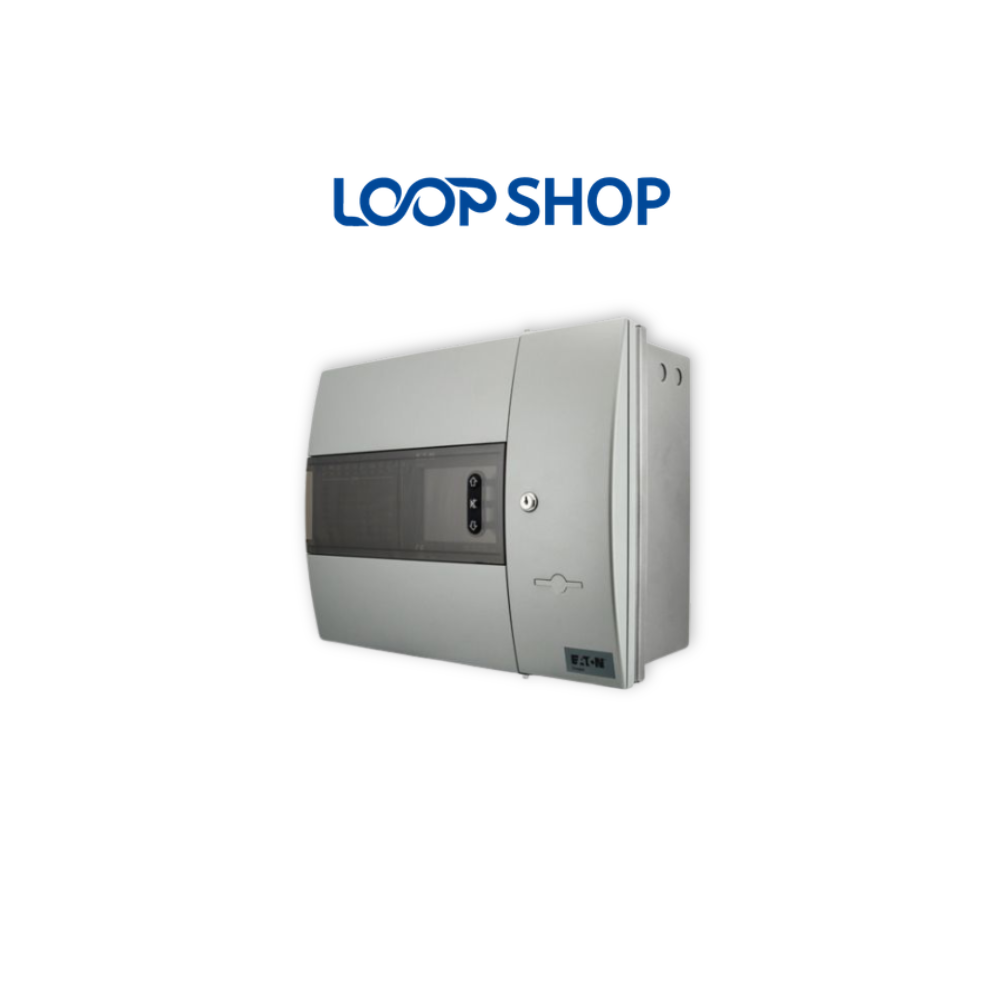

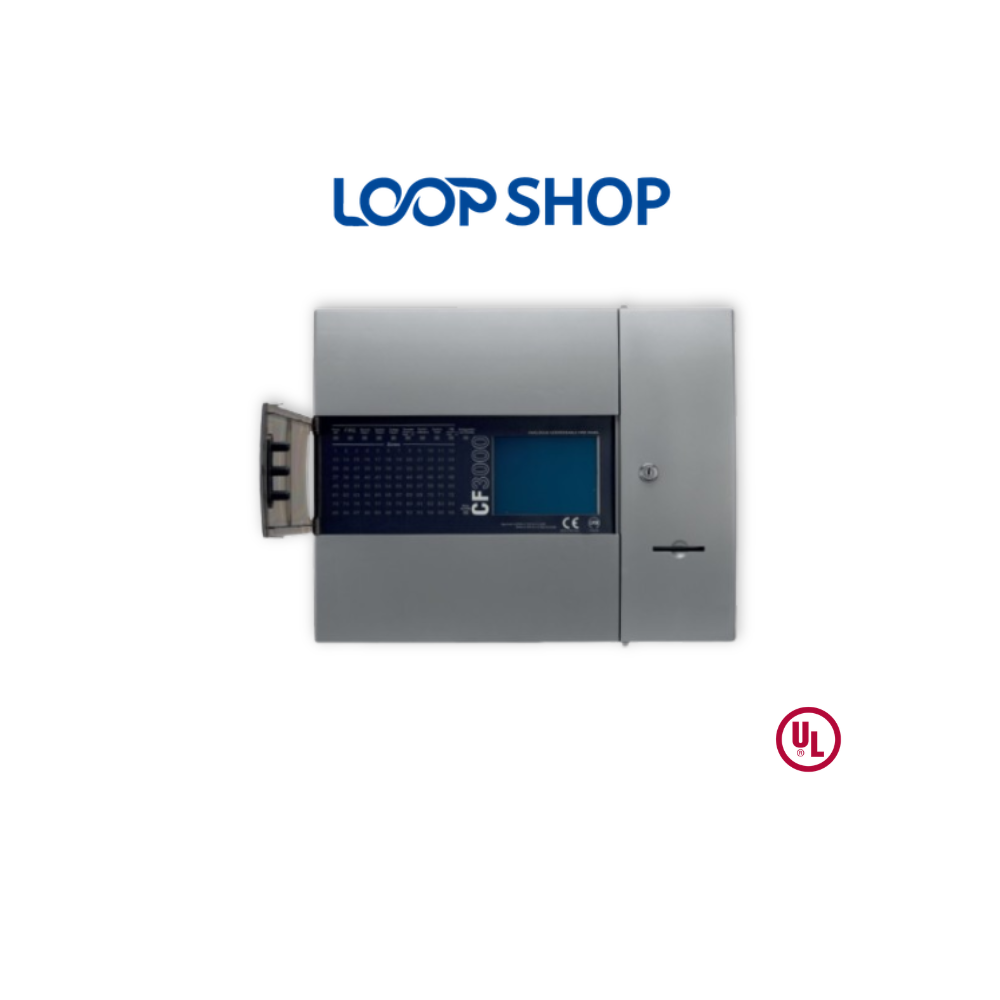

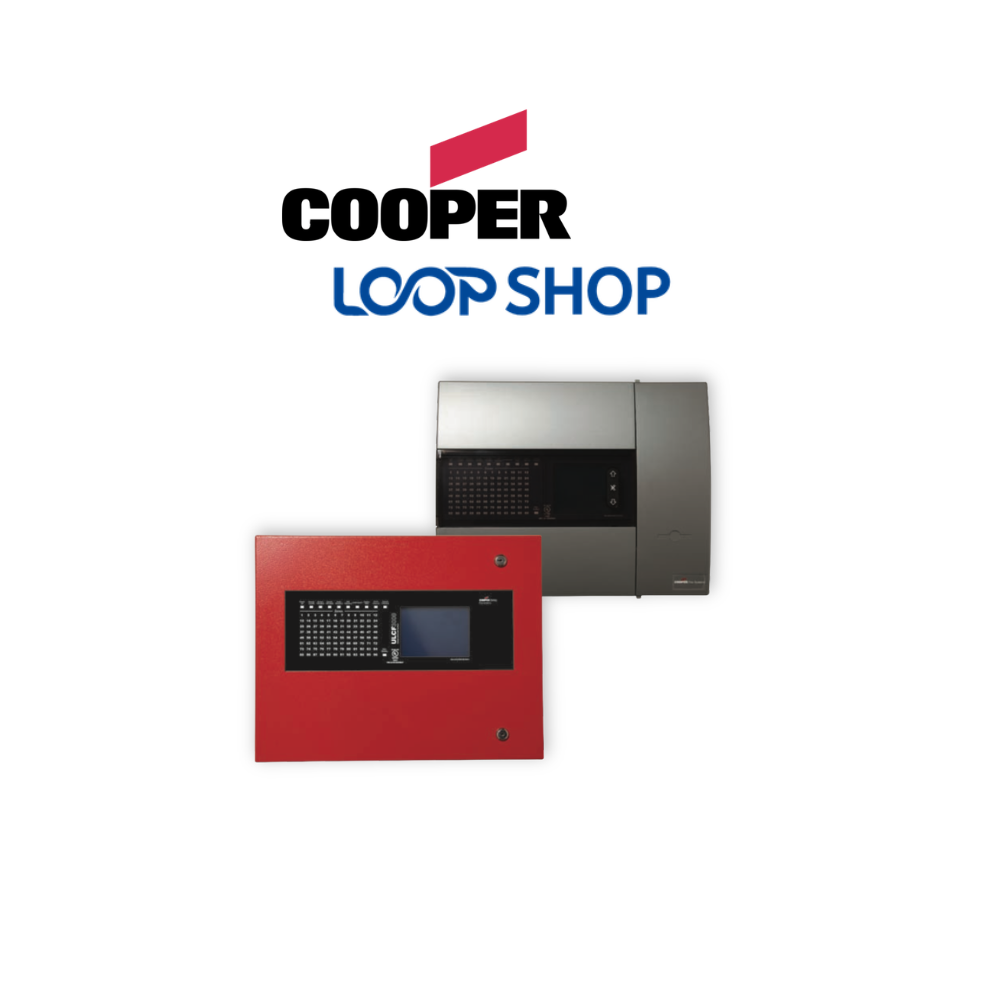

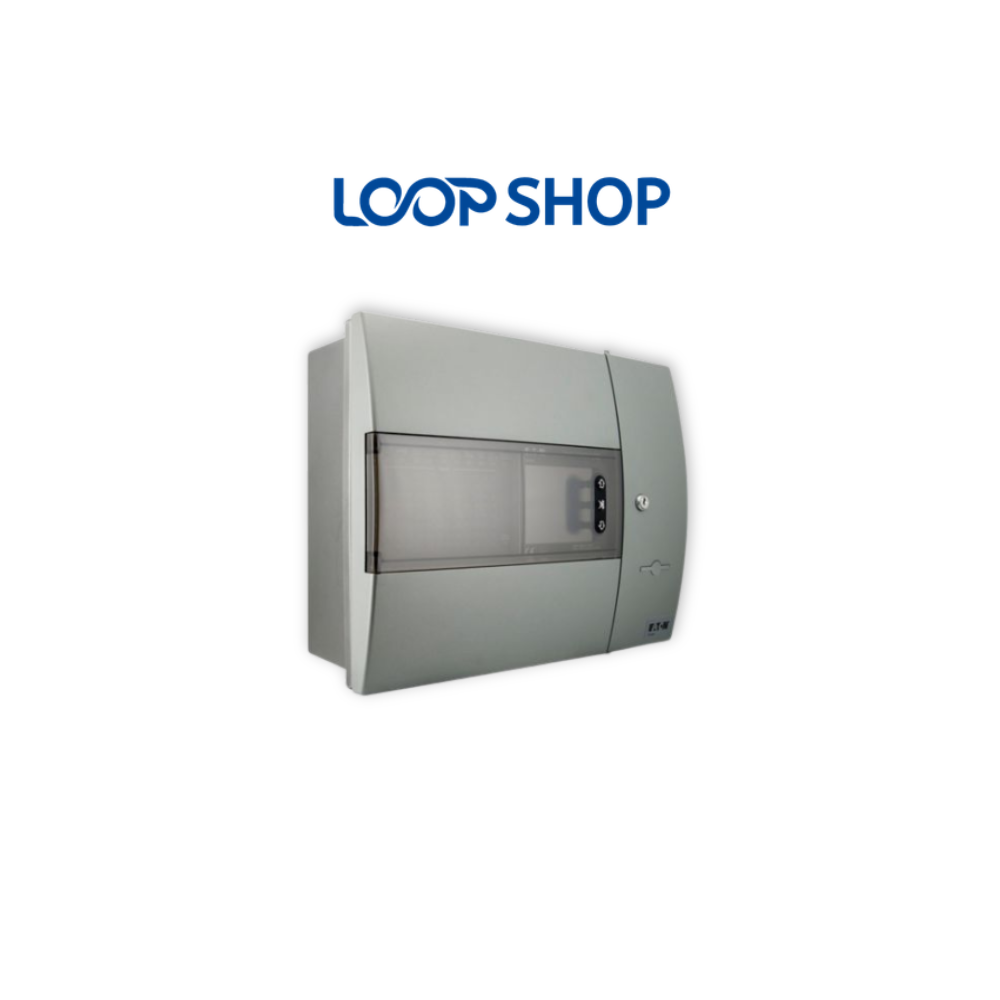

The Eaton Cooper ULCF30004G represents the pinnacle of professional-grade building security, delivering an intelligent, 4-loop addressable fire alarm control panel optimized for large commercial infrastructures and multi-site developments. Combining advanced industrial capability with intuitive daily operation, this UK-engineered system provides reliable, continuous structural life safety monitoring.
The robust Eaton Cooper ULCF30004G serves as the master command station for your entire network of addressable devices, field modules, and notification appliances, making it ideal for a diverse range of projects from industrial facilities through to large multi-site commercial developments.
Verify battery derating factor curves, Class A Style 7 signaling impedances, and multi-panel ring topology paths in the official manufacturer datasheet: eaton-fire-ulcf3000-datasheet-en.pdf. You can cross-verify all international design safety compliance registries directly through the official UL Product iQ Directory.
| Property | Specification Details |
|---|---|
| Brand | Eaton Cooper |
| Catalog Number | ULCF30004G |
| System Topology | Analogue Addressable Panel |
| Certification Standards | UL 864 9th Edition (Control Units and Accessories) |
| Addressable Loops | 4 Loops (Class A, Style 7 SLC Configuration) |
| Addresses Per Loop | Up to 200 addressable points per circuit |
| Detection Groups | 96 Zones with status display fire LEDs |
| Operating Supply | 120V AC / 240V AC, 60Hz, 2.0A supervised source |
| Notification Circuits | 4 Circuits (Class B, Style Y) Supervised, Power Limited & Regulated |
| Chassis Enclosure | Mild steel back box / Flame-retardant ABS front door |
| Ingress Protection | IP30 Rating |
| Dimensions (H x W x D) | 397 mm x 497 mm x 180 mm |
Q1: What is the primary benefit of the soft addressing feature on the ULCF30004G?
A: Soft addressing automatically assigns distinct electronic configurations to connected field devices upon initial loop boot. This completely removes physical dip-switch labor setup times and avoids human layout profile errors.
Q2: How many unique field addresses can this 4-loop panel monitor simultaneously?
A: Each individual loop card tracks up to 200 points, allowing a single Eaton Cooper ULCF30004G panel to manage a total system environment of 800 addressable points.
Q3: Can this control system operate alongside standard Building Management Systems (BMS)?
A: Yes. The panel incorporates onboard serial connection ports (RS232 / RS485), facilitating streamlined external link data transfers into graphical command centers, master repeaters, and localized BMS networks.
Q4: How does the shared circuit current draw handle varying input power values?
A: When powered by a 240V AC primary operating supply, the notification circuits share a maximum available output threshold of 3.0A, which drops safely to 2.25A when running on a 120V AC input line.
Q5: Is a separate isolation module required to guard against loop wire failures?
A: No. The Eaton Cooper ULCF30004G features integral short circuit isolators embedded inside its base card loop processing blocks for native circuit run protection.
