• Single-Action Actuation Profile: Fast-response emergency activation triggered instantly by pulling down the high-visibility white lever front handle
• Integrated Addressable Module: Comes factory-equipped with a built-in ULMCIM-C micro input initiating unit for plug-and-play network synchronization
• Heavy-Duty Metal Shell: Fabricated from premium commercial die-cast metal coated in a high-gloss red protective enamel finish
• High-Visibility Lettering: Features crisp, raised bold white lettering to maximize station visibility from distances up to 50 feet away
• Master Key Reset Mechanism: Secure key-activated lock framework prevents unauthorized manual box resets or tampering disruptions
• Spliceless Wire Connections: Terminal strip clamping links safely anchor loop connections without messy inline wire wrapping loops
• Advanced Circuit Compatibility: Operates smoothly across Class A Style 7 Signaling Line Circuits (SLC) for data loop integrity
• Absolute Code Compliance: Fully certified and registered under strict UL 38 standards governing fire protection manual signaling boxes

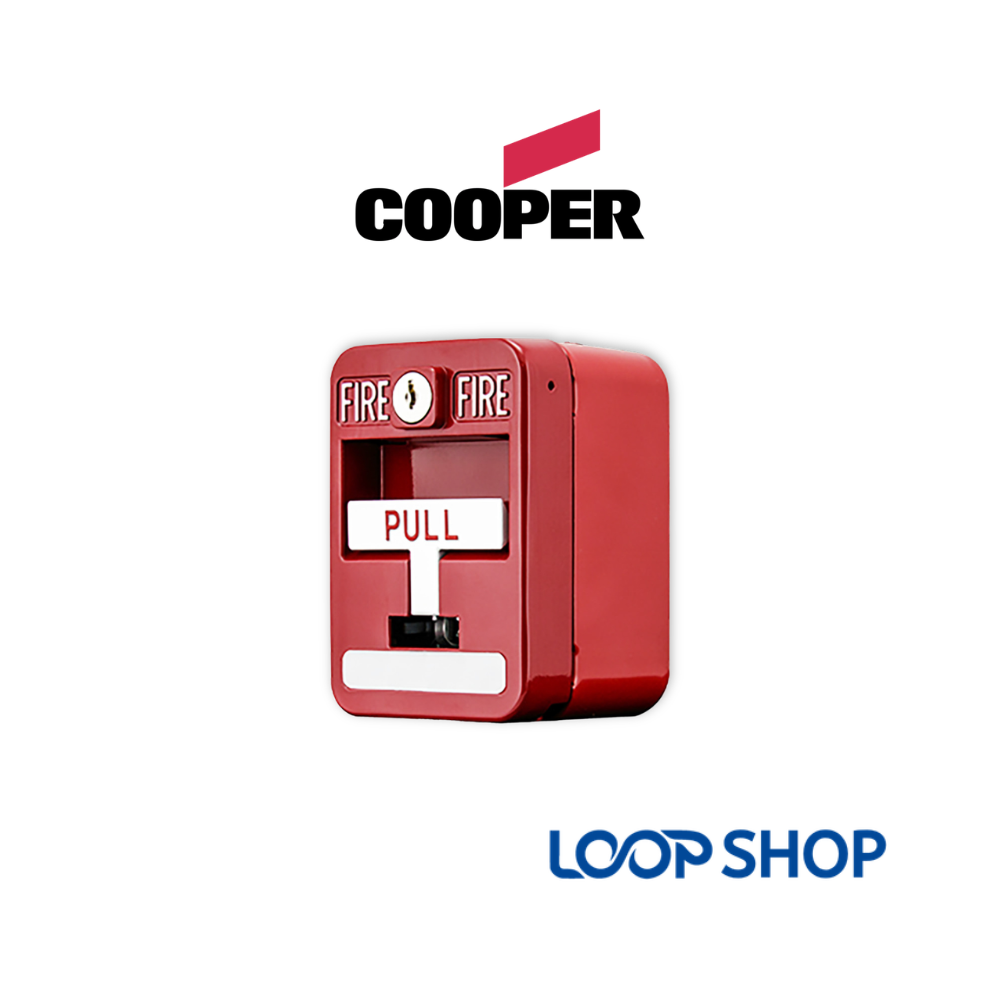

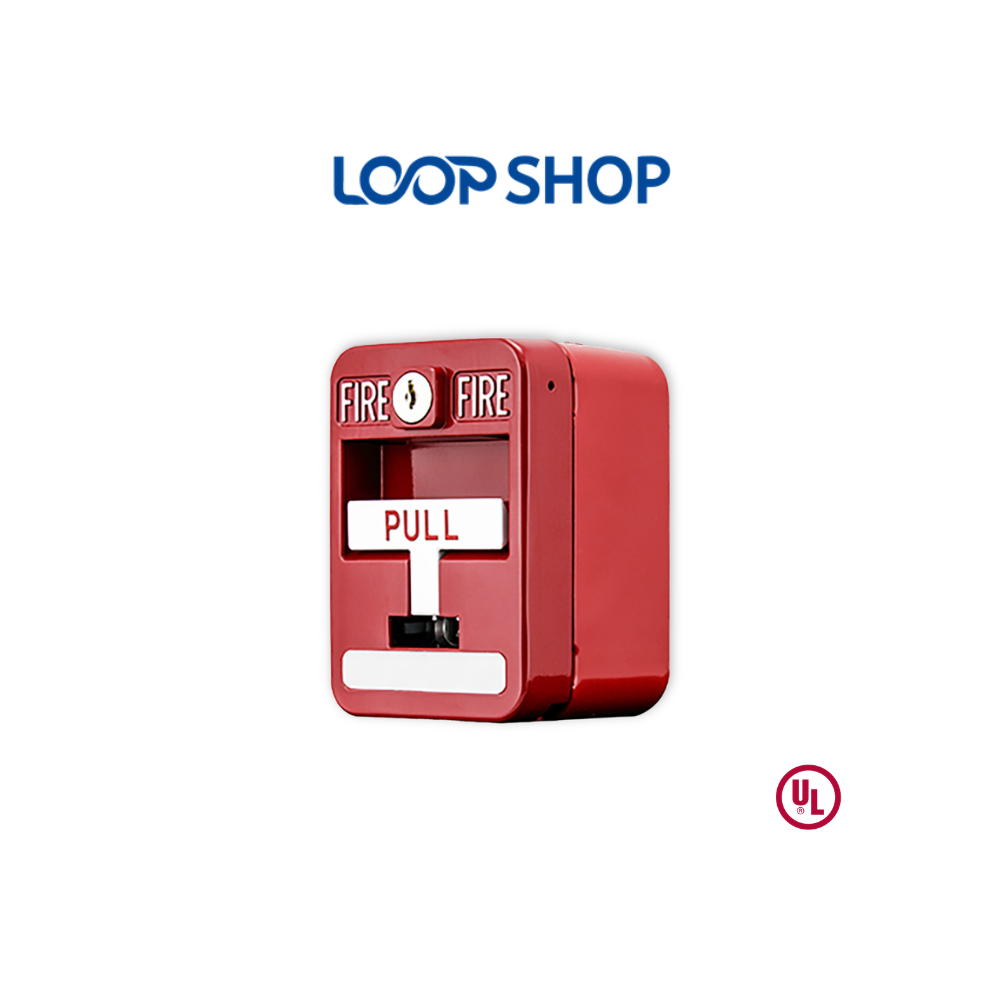

The Cooper EFC-APS100 intelligent addressable manual fire alarm pull station represents an advanced, high-specification life safety interface engineered to deliver rapid, human-initiated emergency signaling.
Specifically constructed to perform flawlessly within demanding institutional complexes, massive manufacturing infrastructures, and commercial real estate footprints, this single-action station acts as an immutable first-line manual checkpoint across your fire protection network.
By housing a factory-integrated, high-speed ULMCIM-C micro input initiating module inside its heavy-duty housing, the assembly achieves instant plug-and-play loop reporting capabilities. The Cooper EFC-APS100 completely bypasses the need for complex localized configuration dip-switches, transmitting direct status changes back to your Eaton command panel over your supervised data loops.
Every component of this premium manual call point is built for resilience. The exterior pull station housing of the Cooper EFC-APS100 is molded from premium, corrosion-resistant die-cast metal.
It is finished with a striking, high-gloss red enamel coating that prevents degradation from indoor dust and ambient climate shifts.
Unlike variants bundled with heavy exterior cast enclosures, this configuration is packaged with a highly reliable local back box. This localized housing allows for faster, more budget-friendly interior surface wall mounting on project sites where extreme weatherproof NEMA ratings are not financially necessary, preserving total core system integrity while reducing global system acquisition costs.
Verify precise technical waveform parameters, alarm current draw limits, and detailed wiring diagrams in the official manufacturer submittal document: eaton-fire-ul-addressable-pull-stations-efc-aps100-datasheet.pdf. You can cross-verify all international design safety compliance registries directly through the official UL Product iQ Directory.
| Property | Specification Details |
|---|---|
| Brand / Manufacturer | Eaton Cooper |
| Catalog Model Number | ULCF30002G |
| Product Function Type | UL Manual Signaling Box / Indoor Fire Alarm Pull Station |
| Regulatory Compliance Standards | UL 38 Listed (Manual Signaling Boxes), CE Certified |
| Addressing Mechanism | Soft Addressing Protocol (Automatic panel discovery auto-learn mapping) |
| Onboard Interface Module | ULMCIM-C (Addressable Fast-Response Input Initiating Module) |
| Circuit Typology Compatibility | Class A, Style 7 Signaling Line Circuit (SLC Loops) |
| Data Loop Standby Current | 322 µA nominal circuit tracking pull |
| Chassis Construction Material | Heavy-duty die-cast metal shell / High-gloss red enamel body |
| Enclosure Back Box Type | Localized surface mount back box engineered for dry indoor environments |
| Operating Temperature Window | 32°F to 120°F (0°C to 49°C) maximum structural limits |
| Physical Dimensions (H x W x D) | 121 mm Height x 83 mm Width x 85 mm Depth profile including local back box |
| Net Assembled Weight | 0.672 kg total structural mass load |
Q1: What is the main difference between this configuration and the default model?
A: The core addressable pull station mechanism and UL electronics are completely identical. The difference is the packaging; this model swaps the heavy cast weatherproof enclosure for a localized interior back box shell, significantly reducing cost footprints for indoor-only building projects.
Q2: How does the integrated ULMCIM-C micro module save technical deployment times?
A: The factory-fitted ULMCIM-C interface utilizes automated soft-addressing intelligence. This allows the fire panel to identify, map, and catalog the manual pull box position programmatically over the addressable data loop, completely bypassing the need to adjust physical binary switches on-site.
Q3: Can this pull station model be flush mounted instead of using the local surface box?
A: Yes. For clean, low-profile interior architectures, you can separate the core die-cast pull station front panel from the local surface box and anchor it flush against a standard single-gang electrical enclosure embedded inside the wall line.
Q4: Can an unauthorized person reset the station handle after an emergency activation?
A: No, absolutely not. The die-cast front housing features a secure, integrated key-lock framework. The activated white handle locks physically into place and can only be returned to its normal standby configuration by an authorized facility engineer using the master reset key.
Q5: What happens to downstream loop units if this call point experiences a wire short circuit?
A: This unit supports Class A Style 7 loops. The integral isolation infrastructure isolates the fault immediately, keeping all adjacent addressable signaling field modules online and functioning correctly.
