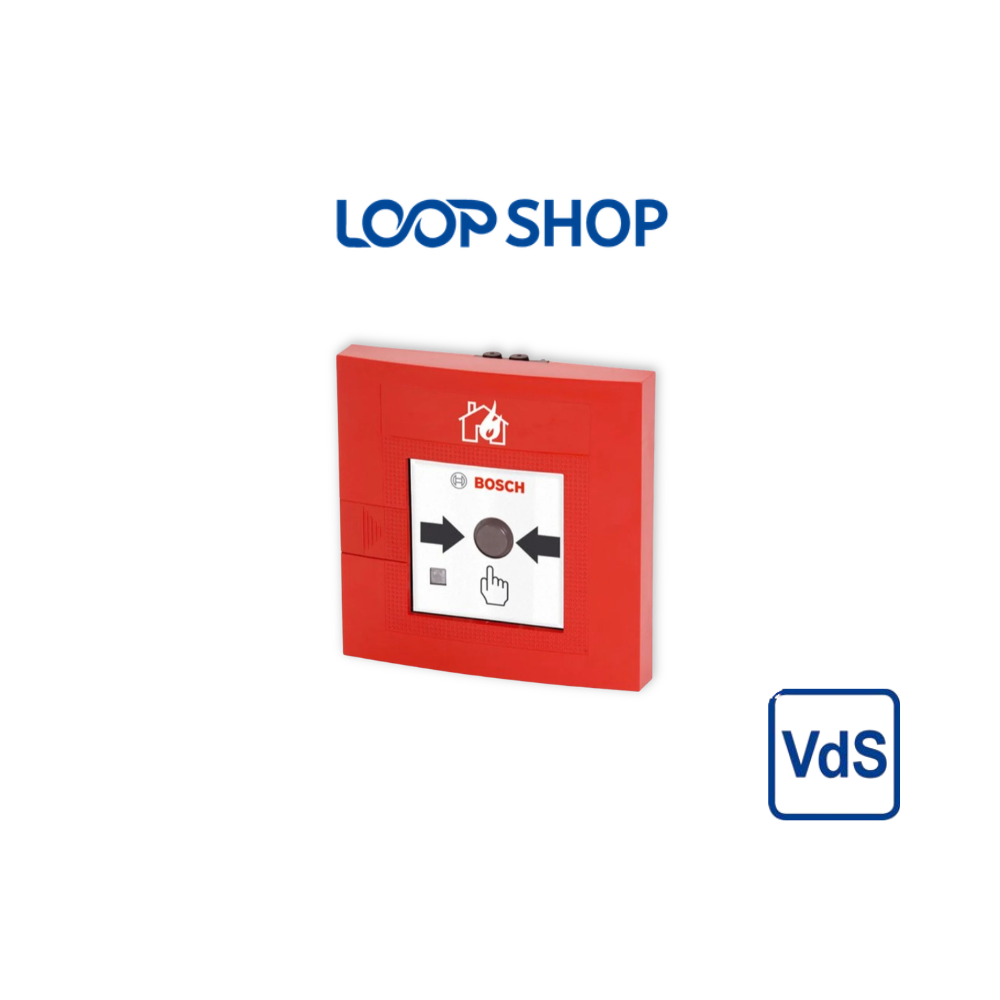

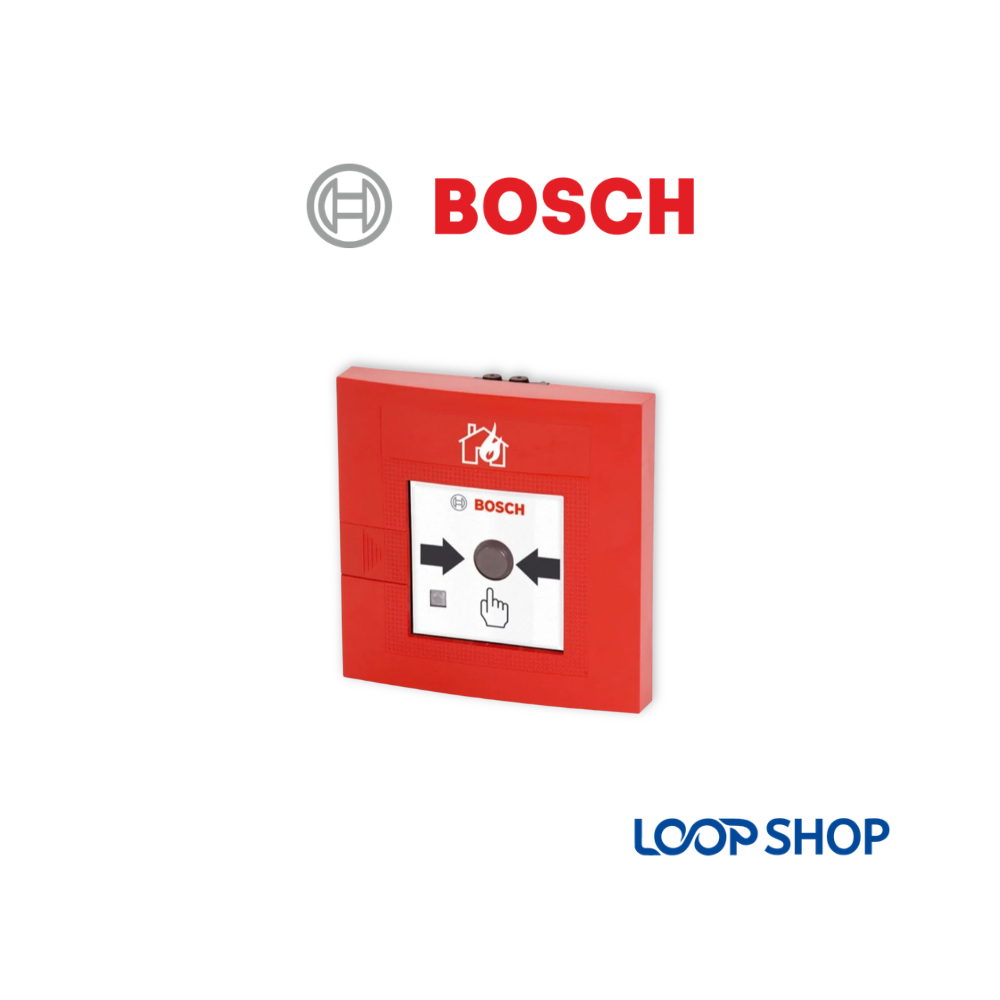

Bosch FMC-210-DM-G-R Addressable Indoor Double-Action Manual Call Point (Red VdS Version)

Description

The Bosch FMC-210-DM-G-R Series Addressable Analog manual call point represents the absolute highest standard of European emergency engineering. Engineered by Bosch in Germany and manufactured to strict quality parameters in China, the Bosch FMC-210-DM-G-R delivers uncompromising life-safety protection.

The highly visible red housing of the Bosch FMC-210-DM-G-R ensures rapid identification inside busy public buildings, exit corridors, and industrial facilities. By leveraging an intelligent indirect triggering mechanism, the Bosch FMC-210-DM-G-R stops accidental activations while maintaining fast crisis responsiveness. Every commercial asset outfitted with the Bosch FMC-210-DM-G-R gains an essential human interface layer to support automatic fire network nodes.

Technical Specifications Table

Double-Action Microswitch Efficiency & Modular LSN Loop Isolation Savings

The core electrical advantage of integrating the comprehensive Bosch FMC-210-DM-G-R addressable manual call point is its dual-stage mechanical activation system profile. The multi-stage design of the Bosch FMC-210-DM-G-R requires the operator to break the protective glass pane before pressing the internal call plate. Furthermore, the premium engineering of the Bosch FMC-210-DM-G-R delivers massive systemic layout flexibility across large facility projects.

If a wire loop experience a sudden cut or grounding short circuit, the isolators inside the Bosch FMC-210-DM-G-R isolate the fault zone instantly. This ensures that the remaining addressable devices on your local security network keep communicating perfectly with the central controller board.

Installers can use the internal rotary switches on the Bosch FMC-210-DM-G-R frame to assign hardcoded node addresses up to 254 elements. Alternatively, keeping the dials of the Bosch FMC-210-DM-G-R at zero passes complete addressing control to modern automated panel software scripts.

To verify standard compliance profiles and secure reference validation link properties, browse the technical parameters on the main Bosch Security and Safety Systems Hub.

Frequently Asked Questions (FAQ)

Q1: How does an operator properly activate the Bosch FMC-210-DM-G-R during a fire emergency?
A: The operator must first break the protective glass pane on the front door frame and then press the internal manual call point plate firmly down.

Q2: Can the Bosch FMC-210-DM-G-R button be reset after testing, or do you have to replace the module?
A: The button mechanism can be reset on-site using an official form G reset key or by simply opening and closing the front door cover structure.

Q3: Does the Bosch FMC-210-DM-G-R ship with a reset key included inside the factory box packing?
A: No, under standard Bosch distribution parameters, the specialized reset and testing key must be ordered separately as an accessory item.

Q4: What is the exact difference between a Form G and a Form H manual call point?
A: Form G models are built for indoor vertical mounting with an IP52 rating, while Form H units feature parylene-layered circuit boards and an IP54 build for outdoor areas.

Q5: What diagnostic information does the integrated indicator LED provide to on-site testing teams?
A: The central indicator LED blinks red immediately upon manual crisis activation and serves as an engineering feedback light during loop query evaluation runs.

Q6: Can this red addressable manual station be wired into traditional conventional system circuits?
A: No, this is an advanced analog addressable component designed strictly to connect to specialized Bosch LSN or LSN improved loop communication grids.

Q7: Does a single wire break on the network line disable the entire call point network segment?
A: No, because the internal hardware features two integrated short-circuit line isolators that maintain full communication loop functions during branch cable faults.
