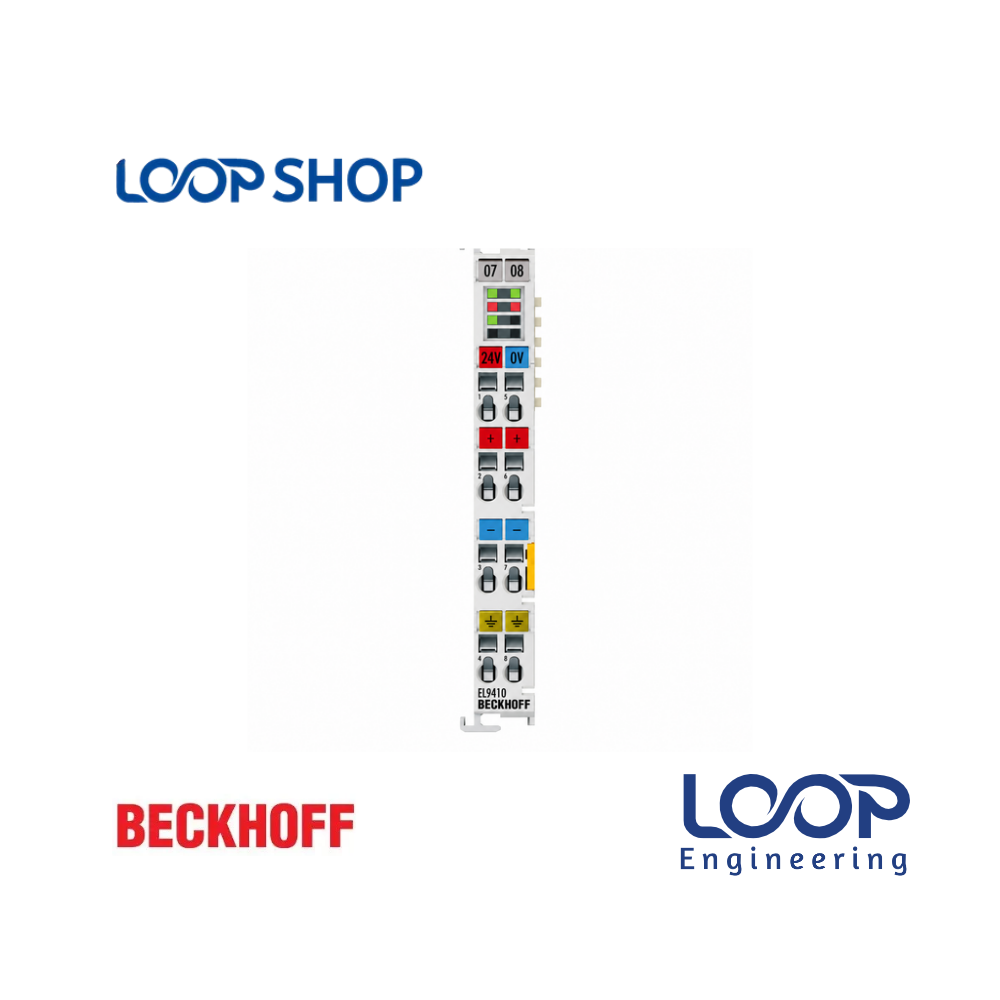

Beckhoff EL9410 E-bus Power Supply Terminal 2A Refresh Module

Description

The Beckhoff EL9410 Power Supply Terminal is an essential infrastructure component for EtherCAT Terminal systems. When an industrial control cabinet contains a high concentration of bus terminals, the cumulative current draw on the internal E-bus can exceed the supply limit provided by the initial bus coupler. The EL9410 unit steps in to refresh the E-bus, supplying an additional 2 A output capability.

By seamlessly bridging the logic power requirements, it ensures continuous data exchange between the coupler and downstream Ethernet/EtherCAT terminals. Built for demanding automation setups, it serves system integrators, panel builders, and industrial maintenance engineers in Bangladesh who demand stable bus communication without data loss or signal degradation.

Key Features

• E-bus Power Refreshing: Provides up to 2 A extra current to downstream EtherCAT terminals.
• Diagnostic Capabilities: Integrated LEDs report operational state and power conditions clearly.
• Process Image Integration: Sends diagnostic status bits directly to the PLC process image for monitoring.
• Compact DIN Rail Mounting: Fits directly into standard Beckhoff EtherCAT terminal blocks.
• Seamless Compatibility: Works inline with standard EtherCAT couplers and I/O modules.

Technical Advantages

• Optimized E-bus Stability: Prevents system resets caused by voltage drop across extended terminal strips.
• Durable Construction: Built to withstand harsh industrial environments, electrical noise, and thermal stress.
• Safety & Overload Protection: Built-in circuit protection safeguards connected control logic components.
• Energy-Efficient Delivery: High-efficiency internal power conversion minimizes cabinet heat generation.
• Easy Maintenance: Plug-and-play insertion into terminal rail segments speeds up replacement and expansion.

Applications

• Industrial Automation: Advanced PLC panels requiring high node counts.
• Factory Control Systems: Textile mills, packaging plants, and processing lines.
• Commercial & Infrastructure Projects: Building automation systems utilizing EtherCAT networks.
• Project Installation: Custom automation panel building and control retrofits.

Why Choose This Product?

• Uncompromising Reliability: Engineered by Beckhoff, a global leader in PC-based control technology.
• Consistent Performance: Eliminates subtle network glitches and communication drops in large I/O racks.
• Cost Effectiveness: Avoids costly plant shutdowns caused by power starvation on the communication bus.
• After-Sales Support: Backed by Loopshop’s dedicated technical support and service commitment in Bangladesh.

Technical Specification Table

Features List

• ✓ 2 A E-bus power refreshment capability
• ✓ Diagnostic LEDs for status reporting
• ✓ Complete integration into EtherCAT process data
• ✓ Compact terminal housing design
• ✓ Built-in electrical protection mechanisms

Benefits For Customers

• Prevents Bus Failures: Guarantees sufficient power for all connected terminals on a long bus segment.
• Improves Operational Reliability: Keeps industrial automation equipment running continuously without communication timeouts.
• Saves Maintenance Cost: Diagnostic features enable quick troubleshooting and minimize machine downtime.
• Suitable for Bangladesh Environment: Handles industrial control panel conditions found in local manufacturing plants.

Installation & Maintenance Guide

Installation Requirements:

• Must be installed onto a standard 35 mm DIN rail (EN 60715).
• Ensure total main power to the control cabinet is switched OFF prior to mounting or wiring.
• Position the EL9410 at the point in the terminal block where the E-bus current budget approaches its limit.
• Connect a stable 24 V DC power supply feed to the designated terminal contacts according to Beckhoff wiring diagrams.

Maintenance Tips:

• Periodically check terminal wire connections to ensure screwless cage clamp contacts remain tight against vibration.
• Inspect diagnostic LEDs regularly during routine panel audits.
• Keep the control cabinet clean and free from excess dust or moisture accumulation.

Safety Instructions:

• Installation should be performed only by qualified electrical personnel or automation engineers.
• Do not exceed the maximum allowed voltage range (24 V DC -15% / +20%).
• Never insert or remove terminals while the system is powered on (Hot-swapping rules apply per Beckhoff guidelines).

Frequently Asked Questions (FAQ)

Q: What is the price of Beckhoff EL9410 Power Supply Terminal in Bangladesh? A: You can check the latest updated price of the Beckhoff EL9410 Power Supply Terminal directly on loopshop.com.bd or contact our customer support for bulk quotation requests.

Q: Where can I buy Beckhoff EL9410 Power Supply Terminal in Bangladesh? A: You can purchase genuine Beckhoff EL9410 terminals online at loopshop.com.bd with fast delivery across Bangladesh.

Q: What warranty does this product have? A: Warranty details depend on manufacturer policies and specific project contracts. Please check our product terms on loopshop.com.bd or contact sales for detailed warranty info.

Q: Is this suitable for Bangladesh climate? A: Yes, the EL9410 is rated for standard industrial operating temperatures (0 °C to +55 °C) inside adequately ventilated control cabinets used in Bangladesh factories.

Q: How to install this product? A: The EL9410 snaps directly onto a standard 35 mm DIN rail alongside EtherCAT terminal blocks and requires a 24 V DC power input connection.

Q: What is the main purpose of the Beckhoff EL9410 terminal? A: Its primary function is to refresh the E-bus power supply by providing an additional 2 A current to downstream terminals when the main coupler’s capacity is reached.

Q: Does the EL9410 offer diagnostic features? A: Yes, it features diagnostic LEDs and sends status data into the EtherCAT process image for PLC monitoring.

Q: Can I use multiple EL9410 terminals on the same EtherCAT segment? A: Yes, you can insert additional EL9410 terminals along an EtherCAT line wherever the E-bus power budget requires a refresh.

Q: What power source is required for the EL9410? A: It requires an external 24 V DC control power source.

Q: Is loopshop.com.bd a trusted supplier of Beckhoff components in Bangladesh? A: Yes, loopshop.com.bd is a leading online supplier of industrial automation and electronics components in Bangladesh, delivering authentic products directly to your doorstep.
