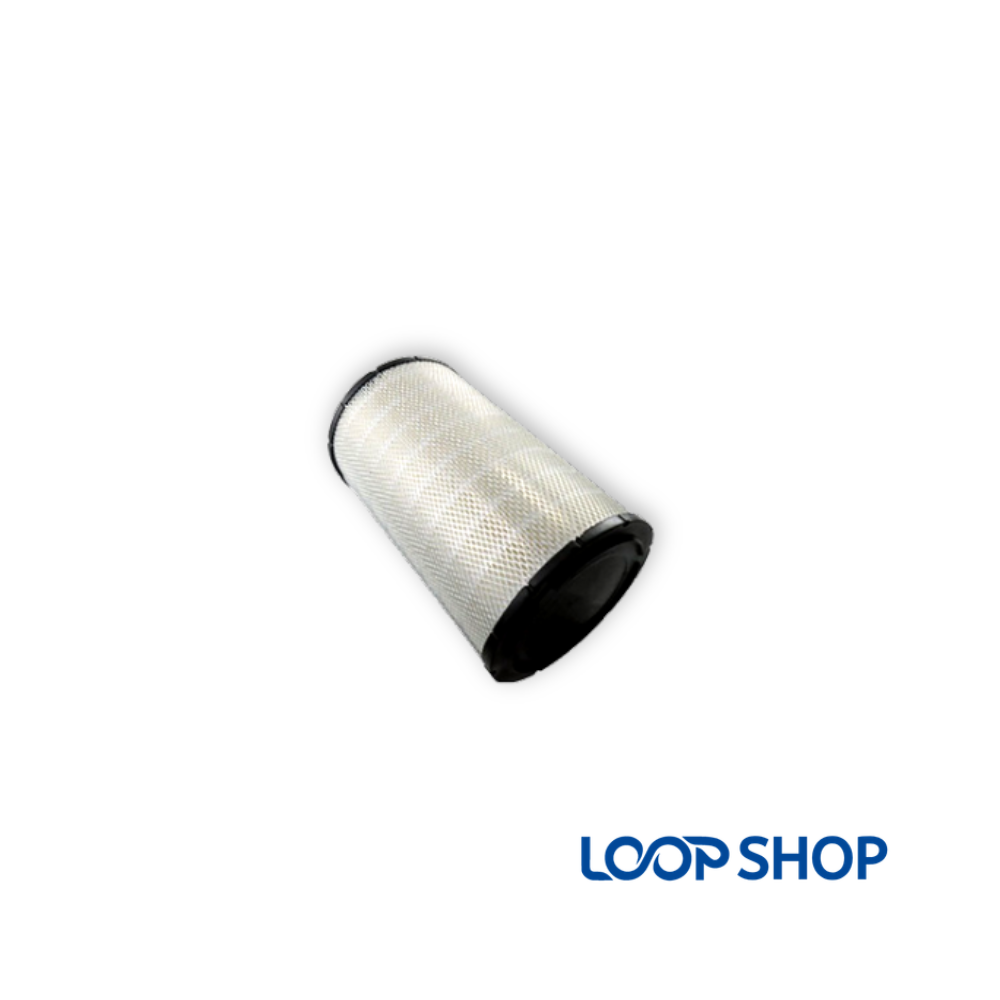

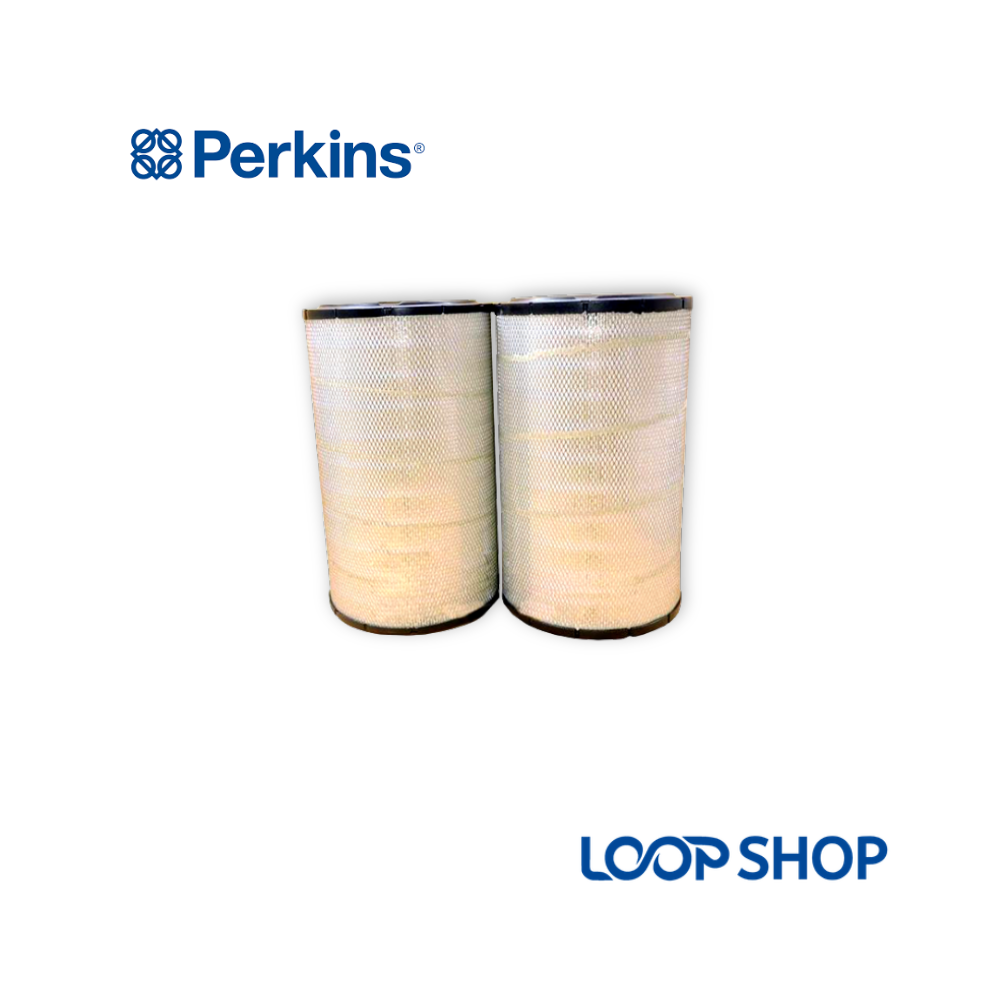

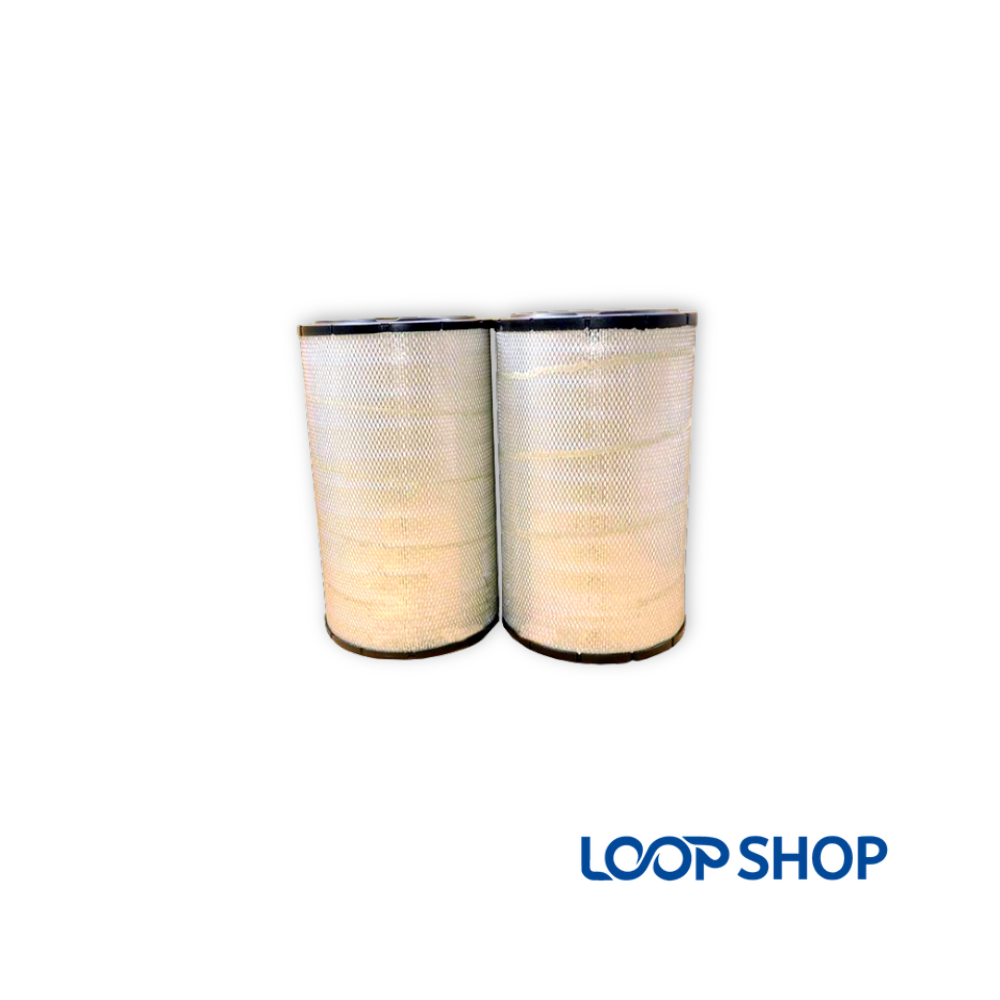

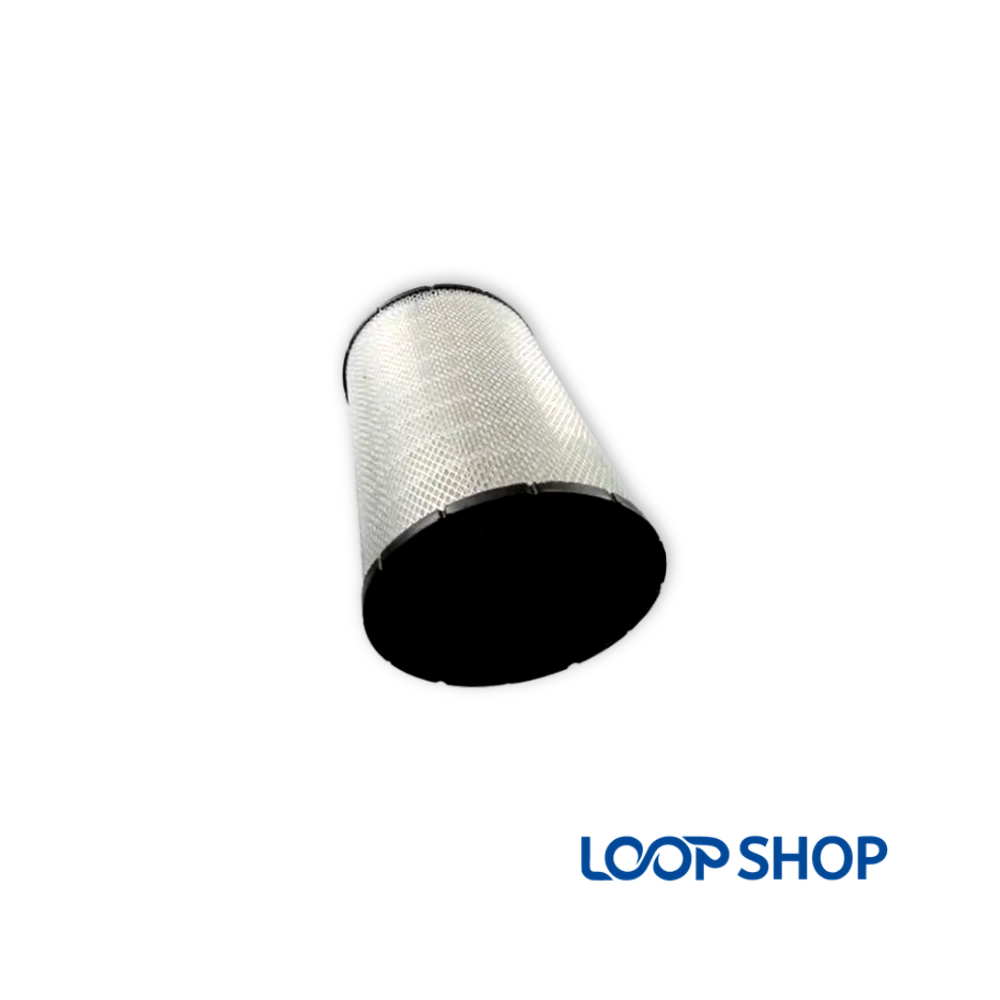

Air Filter for Generator CH11217 | Perkins (PERKINS 2000 Series)

Description

The Air Filter for Generator CH11217 by Perkins is an authentic, high-capacity primary air filtration element designed to protect large-displacement Perkins diesel engines operating in heavy-duty standby and continuous power generation applications. Purpose-built for Perkins 2000 Series engines, the Air Filter for Generator CH11217 prevents airborne contaminants, abrasive dust, and environmental particulate matter from entering the engine intake manifold. By maintaining clean combustion air intake across critical cylinder liners and turbochargers, this heavy-duty filter ensures maximum fuel efficiency and long-term mechanical reliability for industrial power facilities in Bangladesh.

Technical Specifications Table

Maximum Intake Protection & High-Efficiency Airflow

Large industrial power generation engines consume high volumes of air per minute during peak operational demand. The Air Filter for Generator CH11217 is specifically engineered to handle high intake velocity while maintaining exceptional particulate holding capacity. Featuring deep-pleated synthetic filter media reinforced with heavy-duty metal inner and outer liners, the Air Filter for Generator CH11217 resists structural collapse under high intake vacuum conditions during maximum generator load cycles.

Operating generators in dusty, tropical, or unsealed environments across Bangladesh can lead to rapid engine wear if intake air is not properly purified. Installing genuine Air Filter for Generator CH11217 elements protects internal turbocharger compressor wheels, cylinder sleeves, and valve seats from micro-abrasion. Preserving air purity prevents excessive oil contamination, lowers maintenance costs, and ensures compliance with emission standards across commercial, healthcare, and industrial power plant installations.

• Uncompromised Air Purification: The Air Filter for Generator CH11217 traps microscopic dust and silica particles before they reach critical engine combustion chambers.
• Low Air Restriction Design: Optimized pleat spacing allows maximum airflow, preventing engine power loss and excessive fuel consumption.
• Structural Reinforcement: Dual steel mesh liners protect the filter media against mechanical vibration and differential pressure spikes.
• Precision Molded Radial Seal: Ensures a 100% tight seal inside the air cleaner housing to eliminate unfiltered air bypass.
• Extended Engine Life: Reduces wear on expensive engine components, extending overhaul cycles and protecting power plant investments.

Frequently Asked Questions (FAQ)

Q1: What is the official price of the Air Filter for Generator CH11217 in Bangladesh?
A: For current price quotes, wholesale maintenance packages, and delivery schedules, please contact our sales team directly for an official offer on the Air Filter for Generator CH11217.

Q2: Which Perkins engine models use the Air Filter for Generator CH11217?
A: The Air Filter for Generator CH11217 is engineered for Perkins 2000 Series engines, including 2206A, 2506A, and 2806A series models used in 350 kVA to 750 kVA generator sets.

Q3: What are the physical dimensions of the Air Filter for Generator CH11217?
A: It features an overall height of 520.00 mm (20.47 in), an outer diameter of 312.00 mm (12.28 in), and an inner diameter of 179.00 mm (7.05 in).

Q4: Is part number CH11217 equivalent to Fleetguard AF26173 or Donaldson P608552?
A: Yes, part number CH11217 is the direct cross-reference equivalent to Fleetguard AF26173, Donaldson P608552, Baldwin RS4638, and FG Wilson 901-056.

Q5: How often should the Air Filter for Generator CH11217 be replaced?
A: The filter element should be inspected regularly and replaced when the air restriction indicator triggers, or during scheduled maintenance intervals (typically every 500 operating hours or annually).

Q6: Where can I source genuine Perkins generator air filters in Bangladesh?
A: You can purchase 100% authentic Perkins air filters, oil filters, and generator maintenance spare parts directly from our inventory with full warranty backing.
