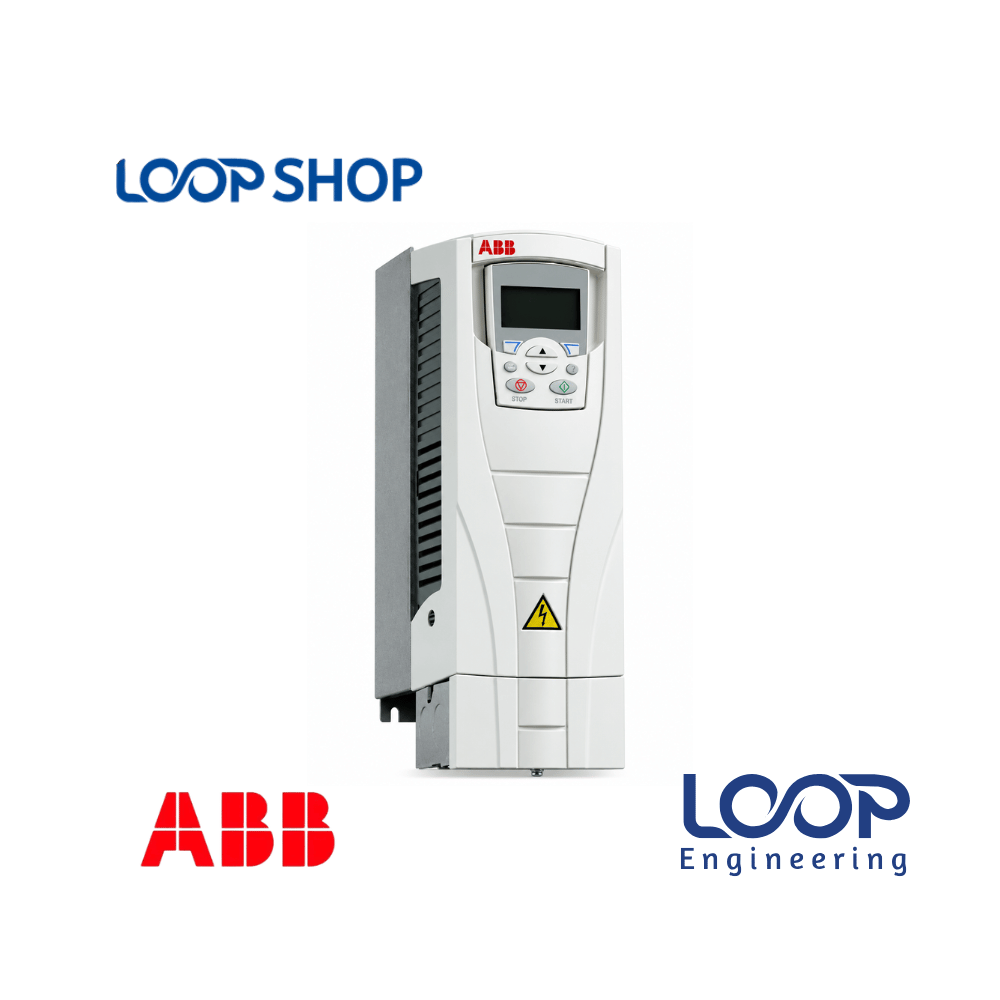

ABB ACS550 7.5kW 10HP VFD Inverter ACS550-01-015A-4

Description

The ABB ACS550-01-015A-4 is an industry-proven, wall-mounted 7.5kW (10HP) Variable Frequency Drive (VFD) engineered to deliver precise speed and torque control for three-phase AC induction motors. By dynamically adjusting the input frequency and voltage, this drive ensures smooth motor start-ups, optimal operational speeds, and maximum energy conservation across diverse industrial applications.

In Bangladesh’s industrial landscape, minimizing operational power overhead while extending equipment lifespan is essential. The ACS550 series addresses these demands by featuring ABB’s patented swinging choke technology, which delivers up to 25% lower harmonics at partial loads compared to traditional chokes. Automation engineers, factory managers, and OEM builders across Bangladesh rely on this unit for reliable continuous operation under demanding grid conditions.

Key Features

• Advanced Vector & Scalar Control: Supports scalar, sensorless vector, and flux vector control modes for superior dynamic response and starting torque.
• Patented Swinging Choke Technology: Integrated variable-inductance choke significantly reduces line harmonics without requiring external reactor hardware.
• Assistant Control Panel: User-friendly keypad with multi-language display, real-time diagnostic logging, and intuitive setup assistant wizards.
• Integrated EMC Filter: Standard built-in category C2 EMC filter minimizes electromagnetic interference on line power supplies.
• Flexible Communication Capabilities: Built-in Modbus RTU interface with expandable fieldbus options for seamless integration into PLC and SCADA automation systems.

Technical Advantages

• High Operational Efficiency: Delivers up to 98% efficiency at rated loads, reducing electrical energy losses and operating panel heat.
• Durable Industrial Construction: Enclosure built to withstand harsh industrial duty cycles with coated electronic cards for environmental protection.
• Comprehensive Motor & Drive Protection: Includes overcurrent, overvoltage, thermal overload, under-voltage, short-circuit, and output phase loss protection circuits.
• Significant Energy Saving: Reduces power consumption by up to 30%–50% in variable torque pump and fan installations compared to direct-on-line (DOL) starters.
• Simplified Maintenance: Comprehensive fault log history and plug-and-play control connections simplify routine inspection and shorten troubleshooting times.

Applications

• Industrial Manufacturing: Drives conveyors, mixers, agitators, extruders, and material handling machinery.
• Textile & Garments Sector: Controls spinning frames, ring frames, stenters, dyeing vessels, and industrial washing systems in textile plants across Bangladesh.
• Commercial HVAC & Buildings: Optimizes supply and return fans, air handling units (AHUs), cooling towers, and circulation pumps.
• Factory Utilities: Manages industrial air compressors, blowers, and booster pump arrays.
• Project Installations: Ideal for municipal water distribution schemes, effluent treatment plants (ETP), and infrastructure developments.

Why Choose This Product?

• Worldwide Track Record: Manufactured by ABB, a world leader in drive technology, offering proven field reliability and robust service life.
• Superior Performance: Provides smooth acceleration/deceleration ramps, protecting motor shafts, couplings, and mechanical loads from stress.
• Cost-Effectiveness: Integrated EMC filter and swinging choke lower total panel space requirements and installation labor costs.
• After-Sales & Technical Support: Backed by authentic sourcing and dedicated technical assistance through loopshop.com.bd.

Technical Specification Table

Features List

✓ Patented swinging choke technology for superior harmonic reduction

✓ Integrated Category C2 EMC filter as standard

✓ Multi-language assistant control panel with setup wizards

✓ Advanced scalar and sensorless vector control modes

✓ Built-in Modbus RTU interface for easy fieldbus integration

✓ High energy efficiency with continuous parameter monitoring

Benefits For Customers

• Reduces Electricity Cost: Adjusts motor speed to exact load requirements, preventing wasted full-speed electrical consumption.
• Improves Operational Reliability: Soft starting capabilities reduce line current spikes and prevent mechanical shock to machinery.
• Saves Maintenance Cost: Extends mechanical component lifetime (belts, bearings, gearboxes) through smooth acceleration control.
• Suitable for Bangladesh Environment: Handles local grid voltage fluctuations and high ambient temperature conditions effectively.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically on a flat, solid, non-flammable surface inside a well-ventilated dust-protected enclosure.
• Maintain sufficient thermal clearance above, below, and beside the drive unit to ensure unrestricted cooling airflow.
• Verify input utility line voltage matches 380V–480V 3-Phase rating before terminating mains wiring.
• Properly earth the drive enclosure using heavy-gauge copper grounding conductors to meet safety and EMC requirements.

Maintenance Tips:

• Periodically clean heat sink cooling fins and internal fan assemblies using dry, clean compressed air to prevent thermal tripping.
• Check power wire screw terminals for recommended torque values during scheduled factory maintenance.
• Ensure control panel doors are sealed tight to protect drive electronics from humidity and textile lint.

Safety Instructions:

• Disconnect all power sources and wait at least 5 minutes for internal DC link capacitors to fully discharge before servicing.
• Only qualified electrical engineers or automation technicians should perform wiring, configuration, and maintenance.
• Do not perform high-voltage insulation tests directly across input/output power terminals.

Frequently Asked Questions (FAQ)

Q: What is the price of ABB ACS550 7.5kW 10HP VFD in Bangladesh?

A: The price of the ABB ACS550-01-015A-4 VFD in Bangladesh depends on market stock and current exchange rates. Please visit loopshop.com.bd or contact our sales team for updated pricing.

Q: Where can I buy original ABB ACS550 7.5kW VFD in Bangladesh?

A: You can purchase 100% genuine ABB ACS550 drives online at loopshop.com.bd with reliable island-wide delivery and technical support.

Q: What warranty does this product have?

A: This product carries standard manufacturer warranty protection against factory defects. Contact loopshop.com.bd for specific warranty terms.

Q: Is this suitable for Bangladesh climate?

A: Yes, the drive is engineered to operate in ambient temperatures up to 50°C (with standard derating) and features coated circuit boards for high humidity resistance.

Q: How to install this product?

A: Mount the VFD vertically inside a cabinet, wire the 3-phase mains input and motor cables, earth the unit properly, and configure parameters via the assistant control panel.

Q: What is the benefit of the swinging choke in the ACS550?

A: ABB’s patented swinging choke reduces harmonic distortion by adjusting its inductance dynamically according to motor load, providing lower total harmonic distortion (THD).

Q: Can this 7.5kW VFD be used for centrifugal pumps and fans?

A: Yes, it is optimized for centrifugal pumps, blowers, and HVAC fans, offering significant energy savings and smooth flow control.

Q: Does this model include an integrated EMC filter?

A: Yes, the ACS550-01-015A-4 includes a built-in Category C2 EMC filter to reduce high-frequency electromagnetic interference.

Q: What is the rated output current for this 7.5kW model?

A: The ACS550-01-015A-4 delivers a rated output current of 15.4A under standard operating conditions.

Q: Does it support Modbus communication?

A: Yes, it includes built-in Modbus RTU communication protocol for easy connection to PLCs and industrial control systems.
