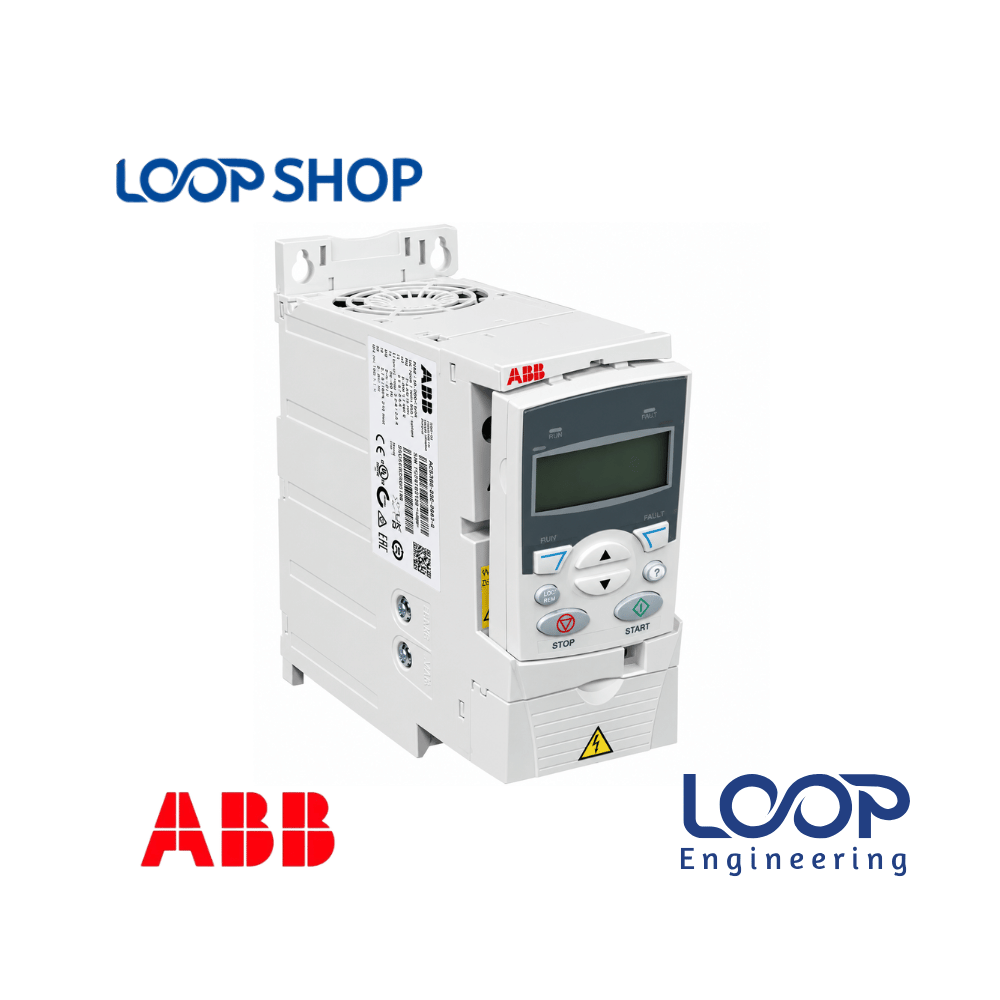

ABB ACS355 1.5kW VFD Inverter ACS355-03E-04A1-4

Description

The ABB ACS355-03E-04A1-4 is a versatile and compact 1.5kW (2HP) Variable Frequency Drive (VFD) engineered specifically for machine builders, system integrators, and process automation applications. By converting 3-phase utility power into adjustable frequency and voltage output, it delivers smooth speed control, accurate dynamic response, and optimal torque management for standard three-phase AC induction motors.

In Bangladesh’s growing industrial and manufacturing landscape, maximizing energy efficiency while minimizing control panel footprint is essential. The ACS355 series fulfills these requirements with its ultra-compact design, built-in functional safety, integrated brake chopper, and user-friendly setup. Automation engineers and OEM equipment manufacturers rely on this unit for robust, continuous operation in demanding local workplace conditions.

Key Features

• Ultra-Compact Design: Slim frame construction supports side-by-side panel mounting, drastically reducing enclosure footprint and panel manufacturing costs.
• Integrated Safe Torque Off (STO): Built-in dual-channel STO functional safety certified up to SIL3 / PLe (IEC 61511 / IEC 62061 / ISO 13849-1) eliminates the need for external main contactors.
• Built-in Dynamic Braking Chopper: Integrated brake chopper enables direct braking resistor connection for high-inertia stopping and rapid deceleration.
• Vector & Scalar Control Modes: Supports scalar control for basic pump/fan speed control and sensorless vector control for high starting torque and load regulation.
• Sequence Programming: Integrated sequence programming capabilities allow basic PLC-style execution directly inside the drive without extra hardware.

Technical Advantages

• High Energy Efficiency: Provides up to 98% efficiency, dramatically reducing thermal energy losses inside control enclosures and cutting operational electricity costs.
• Durable Industrial Construction: Designed with coated printed circuit boards to resist atmospheric dust, humidity, and corrosive ambient environments.
• Comprehensive Electrical Safeguards: Built-in protection against overcurrent, overvoltage, under-voltage, short circuit, phase loss, and thermal overload.
• Fast Setup via FlashDrop: Compatible with optional FlashDrop tools for quick, unpowered parameter downloading across multiple drive units.
• Easy Maintenance: Clear parameter structures and diagnostic indications ensure quick inspection and minimal downtime during routine maintenance.

Applications

• Industrial Manufacturing: Drives small conveyors, packaging machinery, labeling machines, mixers, and sorting tables.
• Textile & Garments Sector: Controls spinning equipment, yarn winders, cloth inspection machines, and small washing units in Bangladeshi factories.
• Pharmaceutical & Food Processing: Perfect for dosing pumps, capping machinery, liquid filling lines, and automated feeders.
• Commercial HVAC & Utilities: Suitable for exhaust blowers, ventilation fans, and booster pumps in commercial spaces.
• Project Installations: Ideal for system integration, local OEM machine building, and panel construction across Bangladesh.

Why Choose This Product?

• ABB Global Reliability: Manufactured by ABB, a world leader in drive technology, offering proven field longevity and performance stability.
• Space-Saving Efficiency: Compact dimensions allow high-density panel layout, lowering total switchboard dimensions.
• Cost-Effective Engineering: Includes integrated STO safety and brake chopper as standard, eliminating redundant external panel components.
• Dedicated After-Sales Support: Supported with technical expertise, genuine sourcing, and reliable service through loopshop.com.bd.

Technical Specification Table

Features List

✓ Built-in Safe Torque Off (STO) certified to SIL3 / PLe standards

✓ Integrated dynamic brake chopper and EMC filter

✓ Compact footprint for side-by-side cabinet mounting

✓ Advanced scalar and sensorless vector control modes

✓ FlashDrop technology compatible for fast parameter loading

✓ Coated electronics for high humidity and dust resistance

Benefits For Customers

• Reduces Electricity Cost: Matches motor speed directly to process demand, avoiding wasted power at reduced loads.
• Improves Operational Reliability: Soft starting eliminates sudden mechanical torque shocks and current spikes during power-up.
• Saves Maintenance Cost: Extends mechanical life of drive belts, bearings, and couplings through smooth speed ramps.
• Suitable for Bangladesh Environment: Built with coated circuit boards to endure tropical humidity and industrial dust conditions.

Installation & Maintenance Guide

Installation Requirements:

• Mount vertically on a flat, non-combustible surface inside a dust-protected, well-ventilated control panel.
• Maintain sufficient clearance above and below the unit for unobstructed cooling airflow; side-by-side mounting is supported.
• Ensure main utility power matches 380V-480V 3-Phase rating before making electrical connections.
• Properly connect a dedicated protective earth ground conductor to ensure electrical safety and EMC compliance.

Maintenance Tips:

• Periodically clean dust and debris from cooling fins using clean, dry compressed air to prevent thermal faults.
• Inspect terminal screws for correct tightness during routine plant shutdowns to avoid high-resistance hot spots.
• Keep cabinet doors closed and inspect intake fan filters routinely to maintain clean internal panel air.

Safety Instructions:

• Disconnect main AC input supply and wait at least 5 minutes for internal DC link capacitors to discharge fully before touching wiring.
• Electrical installation, parameter setting, and servicing must only be performed by qualified electrical personnel.
• Do not conduct megger or insulation resistance testing directly across drive power terminals.

Frequently Asked Questions (FAQ)

Q: What is the price of ABB ACS355 1.5kW VFD in Bangladesh?

A: The price of the ABB ACS355-03E-04A1-4 1.5kW VFD in Bangladesh varies depending on current stock and exchange rates. Check loopshop.com.bd or contact our sales team for updated pricing.

Q: Where can I buy original ABB ACS355 1.5kW VFD in Bangladesh?

A: You can purchase 100% genuine ABB ACS355 drives online directly at loopshop.com.bd with reliable island-wide delivery.

Q: What warranty does this product have?

A: This drive carries standard manufacturer warranty protection against production defects. Contact loopshop.com.bd customer service for specific warranty terms.

Q: Is this suitable for Bangladesh climate?

A: Yes, it is rated for operating temperatures up to 50°C (with standard derating) and features coated circuit boards to withstand humid environments in Bangladesh.

Q: How to install this product?

A: Mount the VFD vertically on a DIN rail or cabinet plate, connect 3-phase AC input lines and motor cables, earth the unit properly, and configure parameters via an optional control panel or tool.

Q: Does the ACS355-03E-04A1-4 include a built-in brake chopper?

A: Yes, this model features an integrated dynamic brake chopper, allowing direct connection of an external braking resistor for fast stopping.

Q: What is the rated output current of this 1.5kW model?

A: The ACS355-03E-04A1-4 delivers a rated output current of 4.1A under 380V-480V 3-phase operation.

Q: Does this drive feature integrated functional safety?

A: Yes, it includes built-in Safe Torque Off (STO) functional safety, certified up to SIL3 / PLe standards.

Q: Can this 1.5kW VFD be used for conveyor systems?

A: Absolutely. The ACS355 series is specifically optimized for small machinery, conveyors, packaging units, and material handling systems.

Q: What input supply voltage is required for this ABB drive?

A: It requires a standard 3-phase AC mains supply ranging between 380Vac and 480Vac at 50/60 Hz.
