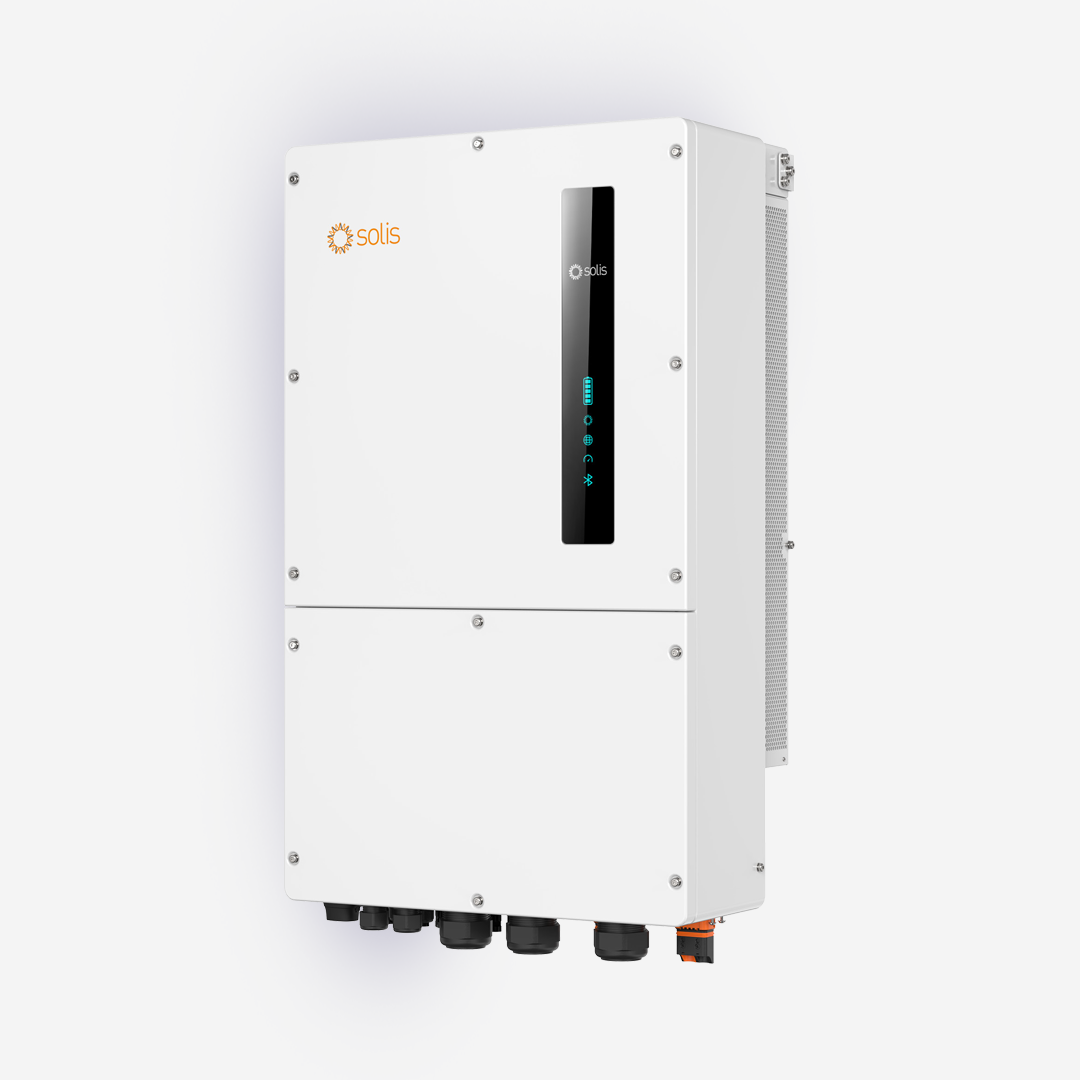

50kw Hybrid Inverter

Description

Key Specifications

• Model: S6-EH3P50K-H​
• Rated AC Output Power: 50,000 W​
•  Maximum DC Input Voltage: 1,100 V​
• MPPT Voltage Range: 200–1,000 V​
• Number of MPPTs / Strings per MPPT: 4 / 2​
•  Maximum Input Current per MPPT: 20 A​
• Maximum Short Circuit Current per MPPT: 40 A
• Maximum Efficiency: 98.8%​
• Rated Grid Voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V​
• Rated Grid Frequency: 50/60 Hz​
•  Maximum Output Current: 83.6 A​
• Power Factor: 0.99 (adjustable from 0.8 leading to 0.8 lagging)
• Total Harmonic Distortion (THDi): <3%​
• Battery Voltage Range: 600–1,000 V​
• Battery Charge/Discharge Current: 140 A (70 A + 70 A across two ports)​
• Ingress Protection: IP66 (suitable for outdoor installation)​
• Dimensions (W × H × D): 647 × 629 × 252 mm​
• Weight: 37 kg​
• Cooling Method: Natural convection (fanless design)​
• Operating Temperature Range: -25°C to +60°C​
• Communication Interfaces: RS485, Optional: Wi-Fi, GPRS​
• Certifications: IEC 62109-1/-2, IEC 61727, IEC 62116​
• Warranty: 5 years standard (extendable options available)​

Notable Features

• High Efficiency: Achieves up to 98.8% maximum efficiency, ensuring minimal energy loss during conversion.​
• Advanced MPPT Technology: Four MPPTs allow for flexible system design and optimized energy harvest across varying conditions.​
• Battery Compatibility: Supports high-voltage lithium batteries with a wide voltage range (600–1,000 V), accommodating various energy storage solutions.​
•  High Charge/Discharge Capacity: Offers a total battery charge/discharge current of 140 A (70 A + 70 A across two ports), suitable for 280 Ah cell standard 0.5C applications.​
• Overload Capability: Provides a short-term overload capacity of up to 160% for 2 seconds, ensuring reliable operation during peak demand.​
• Smart Monitoring: Supports real-time monitoring via RS485 communication and optional Wi-Fi/GPRS interfaces, compatible with dedicated apps for iOS and Android.​
• Durability: Designed with a high ingress protection rating (IP66), making it suitable for harsh environmental conditions
