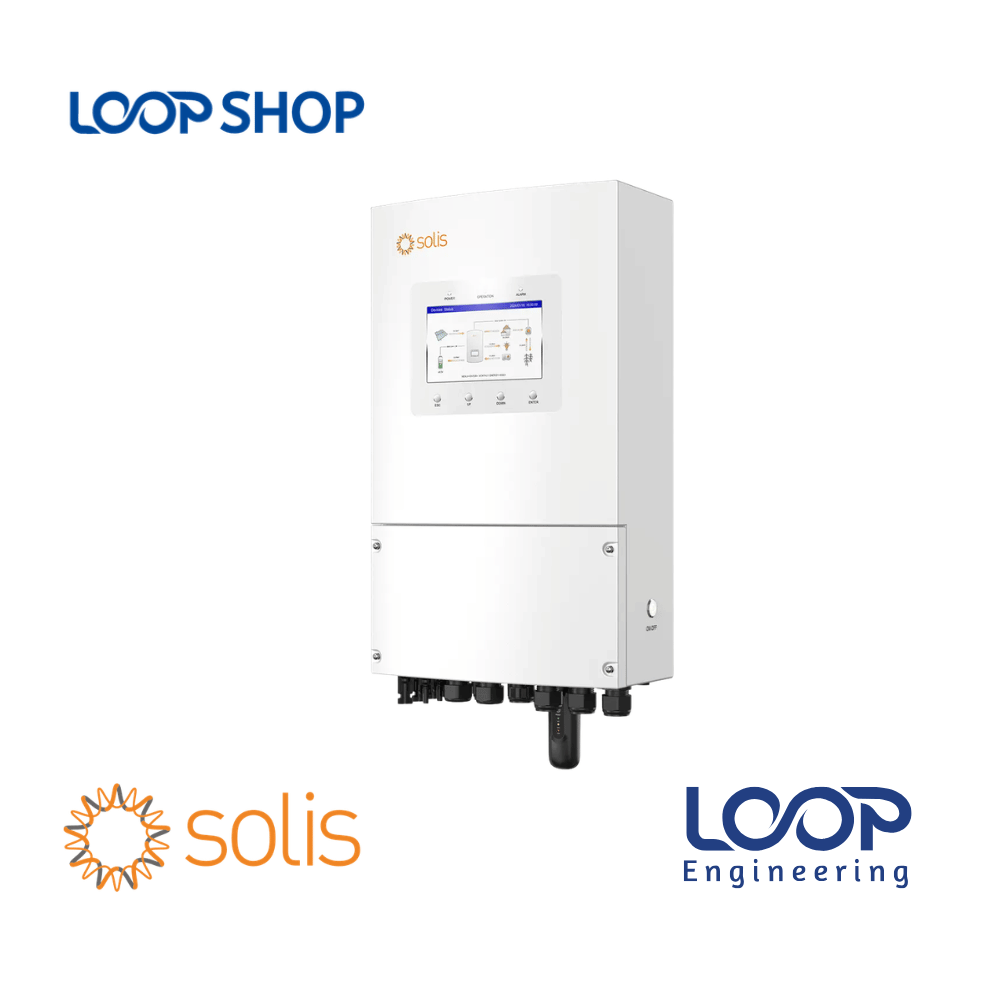

20kw Hybrid Inverter

Description

Key Specifications

• Model: S6-EH3P20K-H
• Rated AC Output Power: 20,000 W​
• Maximum Efficiency: Up to 97.7%​
• MPPT Voltage Range: 200–850 V
• Maximum DC Input Voltage: 1,000 V​
• Maximum Input Current: 20 A per MPPT (4 MPPTs)​
•  Battery Voltage Range: 120–800 V​
• Maximum Charge/Discharge Power: 20 kW
• Maximum Charge/Discharge Current: 50 A​
•  Ingress Protection: IP66 (suitable for outdoor installation)
• Cooling Method: Natural convection (fanless design)​
• Operating Temperature Range: -25°C to +60°C​
• Dimensions (W × H × D): 580 × 810 × 450 mm​
• Weight: Approximately 52 kg​

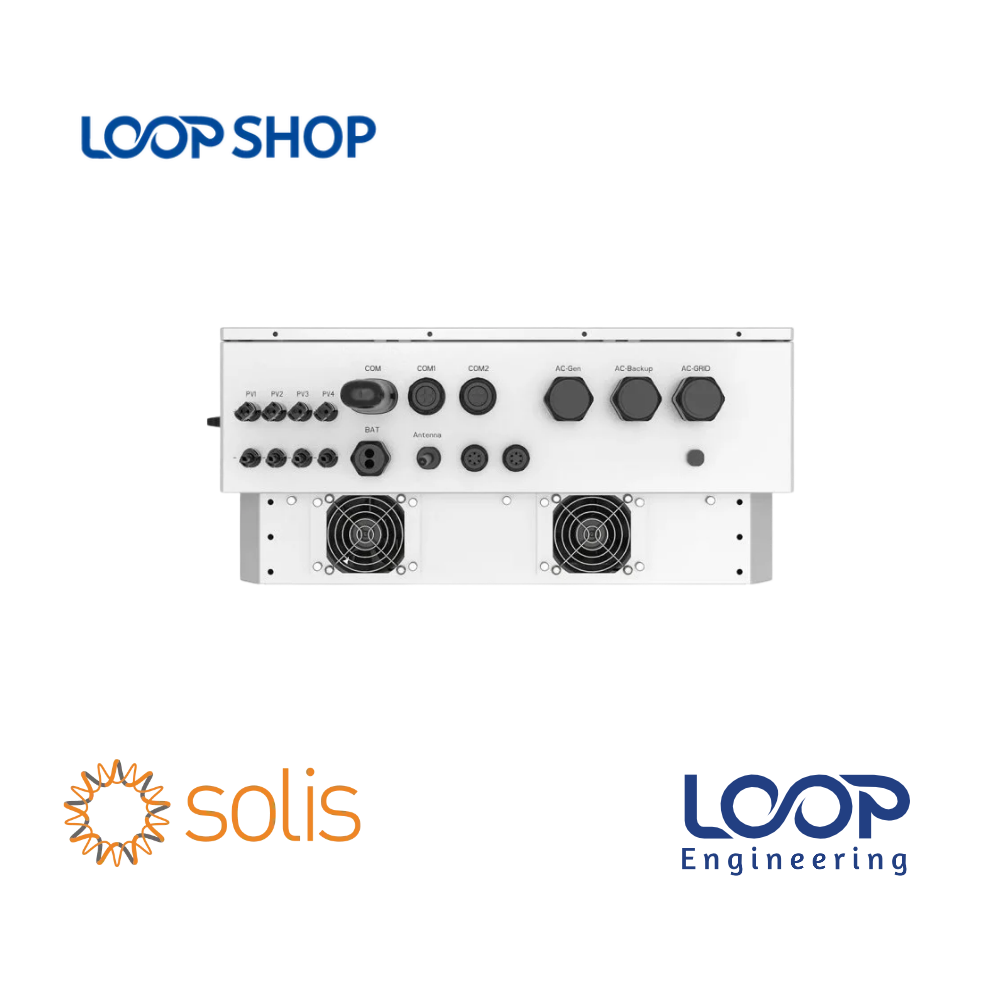

• Communication Interfaces: RS485, CAN, Optional: Wi-Fi, GPRS, LAN​
• Certifications: IEC/EN 62109-1/-2, EN 61000-6-2/-3​
• Warranty: 5 years standard​

Notable Features

• Uninterrupted Power Supply: Provides a rapid switchover time of less than 10 ms to ensure continuous power supply during outages.​
• Overload Capability: Offers a 10-second 200% surge power backup overload capacity, ensuring reliable operation during peak demand.​
• Multiple Operating Modes: Supports various working modes, including self-use, time-of-use, and generator modes, to maximize self-consumption and increase overall system benefits.​
• Advanced Safety Features: Includes ground fault monitoring, reverse polarity, and overload protection.​
• Intelligent Energy Management: Features intelligent EMS functions with 6-stage timed charge and discharge settings to improve battery reliability and overall system efficiency.​
• Real-Time Monitoring: Supports real-time intelligent energy management with remote control capabilities via RS485, CAN, and optional Wi-Fi/GPRS/LAN interfaces.​
• Parallel Connection: Allows for parallel connection of up to 6 inverters, enabling scalability for larger systems.
